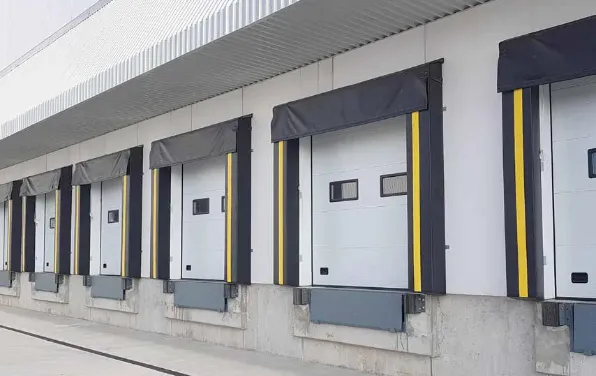

Thermatite Series

Sectional insulated steel doors.


https://www.rwdoors.com/images/T150-MR.jpg

Thermatite Profiles

  • /images/mr-profile.jpgMulti-Ribbed
  • Ribbed

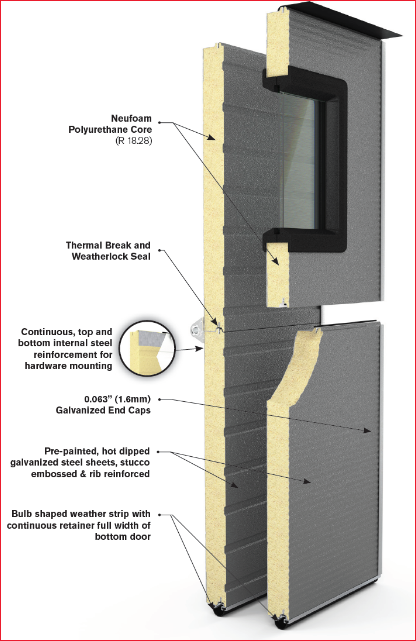

Introducing the New T200C (Download the T200C Sell Sheet)

Download The Thermatite (T150-MR, T150) Sellsheet

Download The Thermatite (T175-MR, T175) Sellsheet

Download The Thermatite (T200-MR, T200, T200A) Sellsheet

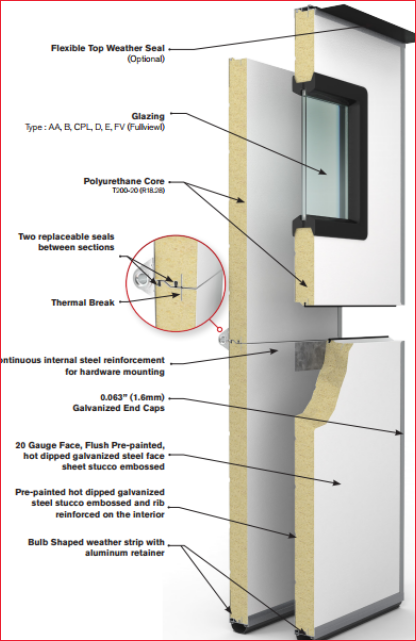

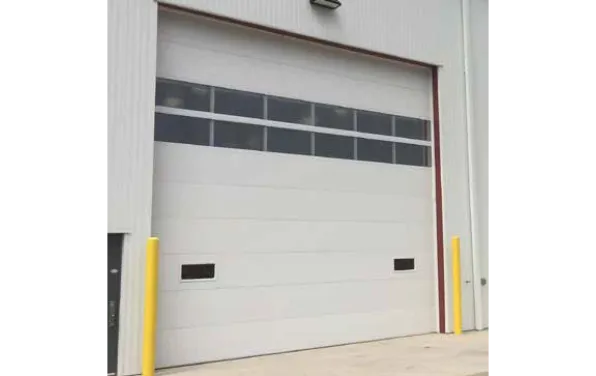

Download The Thermatite (T200-20) Sellsheet

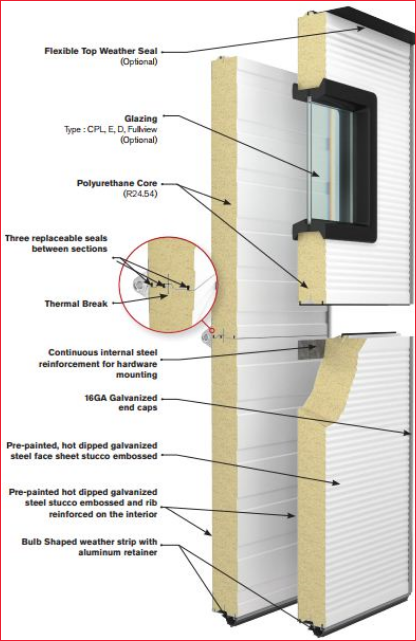

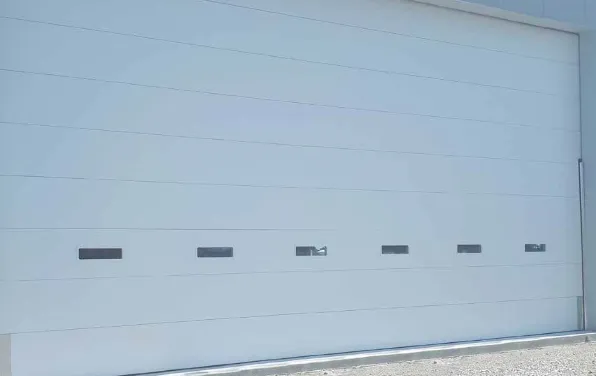

Download The Thermatite (T300-MR, T300) Sellsheet

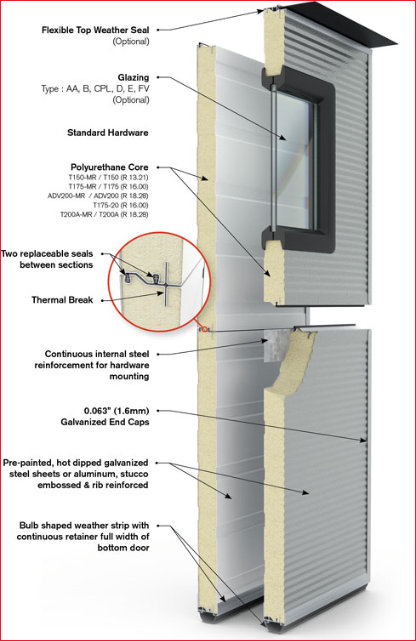

Thermatite Door Systems are built stronger with Neufoam™ technology – a continuous foaming process that renders cavity-free sections. No air pockets inside the panel ensures superior adhesion of our CFC/HCFC-free polyurethane insulation to the steel skin, preventing delamination and providing exceptional structural integrity. The door has a higher strength-to-weight ratio, offers a better thermal barrier (higher R-Value) and resists deflection. Sections feature thermal breaks and two continuous replaceable seals to minimize air flow. Installed with our highest quality hardware components, Thermatite Doors are engineered to provide many years of worry-free operation and are suitable for a wide range of applications.

Specification Sheets

T150 Standard Specification | T175 Standard Specification | T200-20 Standard Specification | T200MR Standard Specification | T300MR Standard Specification



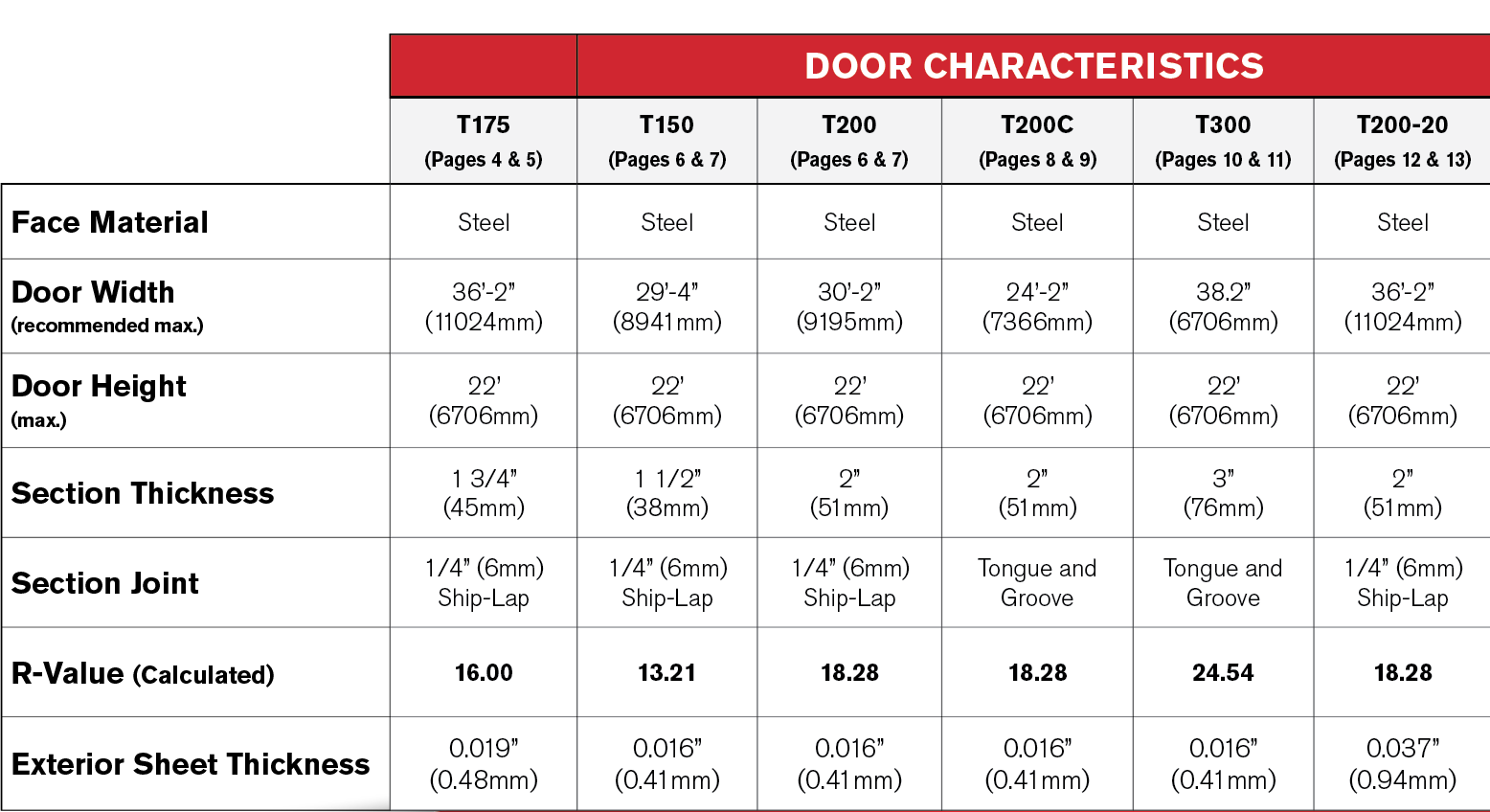

    Section Details

  • Section Thickness

  • T150-MR / T150 1 1/2″ (38mm)
  • T175-MR / T175 1 3/4″ (45mm)
  • T200MR / T200 2″ (51mm)
  • T200A-MR / T200A 2″ (51mm)
  • T200-20 2” (51mm)
  • T300-MR / T300 (Total Door Thickness) 3″ (76mm)

  • Thermal Value of Sections

  • T150-MR / T150 R 13.21 ft2 hF/Btu

  • T175-MR / T175 R 16 ft2 hF/Btu

  • T200MR / T200 R 18.28 ft2 hF/Btu

  • T200A-MR / T200A R 18.28 ft2 hF/Btu

  • T200-20 R 18.28 ft2 hF/Btu
  • T300-MR / T300 R 24.54 ft2 hF/Btu

  • Face Sheet Profile

  • T150-MR / T150 Multi-Ribbed / Ribbed
  • T175-MR / T175 Multi-Ribbed / Ribbed
  • T200MR / T200 Multi-Ribbed / Ribbed
  • T200A-MR / T200A Multi-Ribbed / Ribbed
  • T200-20 Flush / White
  • T300-MR / T300 Multi-Ribbed / Ribbed

  • Face Sheet Thickness

  • T150-MR / T150 0.016″ (0.41mm)
  • T175-MR / T175 0.019″ (0.48mm)
  • T200MR / T200 0.016″ (0.41mm)
  • T200A-MR / T200A 0.025″ (0.64mm)
  • T200-20 20 Gauge
  • T300-MR / T300 0.016″ (0.41mm)

  • Maximum Opening Width

  • T150-MR / T150 29’-4″ (8941mm)
  • T175-MR / T175 36’-2″ (11024mm)
  • T200MR / T200 30’-2″ (9195mm)
  • T200A-MR / T200A 24’-2″ (7366mm)
  • T200-20 38’ 2” (11,633 mm)
  • T300-MR / T300 38′-2″ (11633mm)

  • Maximum Opening Height

  • All models 22′ (6706mm)

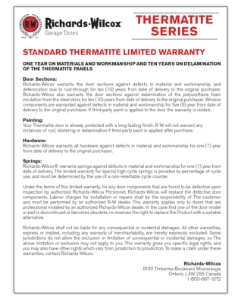

  • Warranty

  • 10 years against delamination of the panels
  • 1 year on materials and workmanship

  • White
  • Silver
  • Brown

For additional colours, refer to the T200C Sell Sheet above.

Color Options:

Two coat, baked-on paint system on exterior side, primer and polyester finish coat.

  • T150-MR / T150 White / Brown / Silver / Bronze / Charcoal Grey / Forest Green / Black
  • T175-MR / T175 White / Brown / Café / Silver
  • ADV200-MR / ADV200 White
  • T175-20 White
  • T200A-MR / T200A White
  • T300-MR / T300A White

thermatite-windows

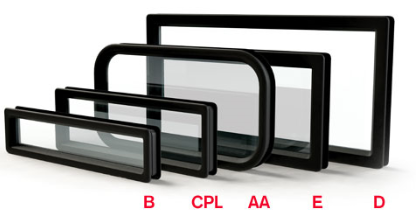

Glazing Options:

Type Dimensions globales Frame Colour Description
B 24″ x 6″
610mm x 152mm		 Black, White Clear glass sealed unit set in moulded frame.
CPL 24″ x 8″
610mm x 203mm		 Black, White, Brown Clear glass sealed unit set in moulded frame.
AA 26″ x 13″
660mm x 330mm		 Black, White Dual acrylic unit set in moulded frame.
E 24″ x 12″
610mm x 305mm		 Black, White, Brown Clear glass sealed unit set in moulded frame.
D 34″ x 16″
864mm x 406mm		 Black, White Clear glass sealed unit set in moulded frame.
FV Full Section Width   Full vision aluminum glass section – white, clear anodized* finish; 1/8″ (3mm), (6mm*) acrylic, polycarbonate, plain or tempered glass, or 1/2″ (13mm) sealed or tempered glass units.

com-hinge

com-track

com-rollers

com-springs

com-stepPlatecom-exhaustPort

Standard Hardware



Weatherstripping

Full length retainer and bulb weather strip minimize air flow and ensure weather-tightness at the base of your door.

Trussing

Doors are constructed to withstand wind load specified in ANSI/DASMA 108. Linear style trusses are provided according to door size. Additional trussing can be provided for higher wind load applications.

Track

Roll formed from commercial galvanized steel. Vertical tracks sloped to ensure weather tight seal. Horizontal track curve available in 12″ (305mm) or normally provided 16″ (406mm) radius.

Track Brackets

Bolted type, field adjustable, rib reinforced, stamped from 0.123″ (3.1 mm) thick commercial galvanized steel.

Rollers

Ten ball bearings provide years of smooth and quiet operation. 7/16″ (11mm) diameter standard stem, long stem on doors over 16’-2″ (4928mm) wide.

Counter Balance

Helically wound torsion springs manufactured from oil tempered spring wire, stress relieved, minimum 10,000 cycles. Aluminum die-cast grooved drums. Flexible 7 x 19 construction aircraft type galvanized cables with 5:1 safety factor. Higher cycle available upon request.

Horizontal Angle

72″ (1829 mm) long or 90″ (2286mm) for 3″ hardware.

Hinges

Linear type, fabricated from 0.078″ or 0.106″ (2 or 2.7mm) thick zinc plated steel with embossments designed to resist higher load and provide greater stability resulting in improved performance.

Top Roller Carrier

Fabricated from zinc plated steel designed to provide greater stability, field adjustable to ensure weather tight seal.

Roller Brackets

Linear type fabricated from 0.078″ or 0.106″ (2 or 2.7mm) zinc plated steel. Graduated type design to ensure weather tight seal.

Shafts

1″ (25mm) diameter 0.078″ (2mm) tube or 1/8″ (3mm) wall keyed full length or 1″ (25mm) diameter cold rolled galvanized steel keyed full length.

Head Plates

Full height fabricated from galvanized steel, complete with bolt-on type bearings.

Lock

Interior slide bolt type.

Mounting Fasteners

Zinc plated.

Optional Hardware

  • Combination PVC step plate and lift handle
  • Exhaust port: 3″ (76 mm) / 4″ (102mm) / 5″ (127mm) diameter
  • Flexible top weather strip for full width of door
  • Full height thermal break and anti-friction strip for galvanized end caps
  • Aluminum end stiles with full height jamb seal
    (Note: For T175-MR, T175, T175-20 only)
  • Pass doors: 32″ x 80″ (813mm X 2032mm) four section pass door available in doors up to 16.2’ (4928mm)
    (Note: *14.2’ (4381mm) for T150 and T200A)

Additional Information

arcat_logo_lrgClick Here for detailed specifications per model including CAD files, SpecWizards® and LEED credit information.
