Thermatite T200-20

OVERHEAD SECTIONAL INSULATED STEEL DOOR

The choice for durability and thermal efficiency in challenging environments. With a heavy duty 20-gauge exterior sheet, the T200-20 has all you’d expect for a wide range of applications.

T200-20 details

Glazing

Fullview Sections

Door opening dimensions

Hardware

Gallery

Documents

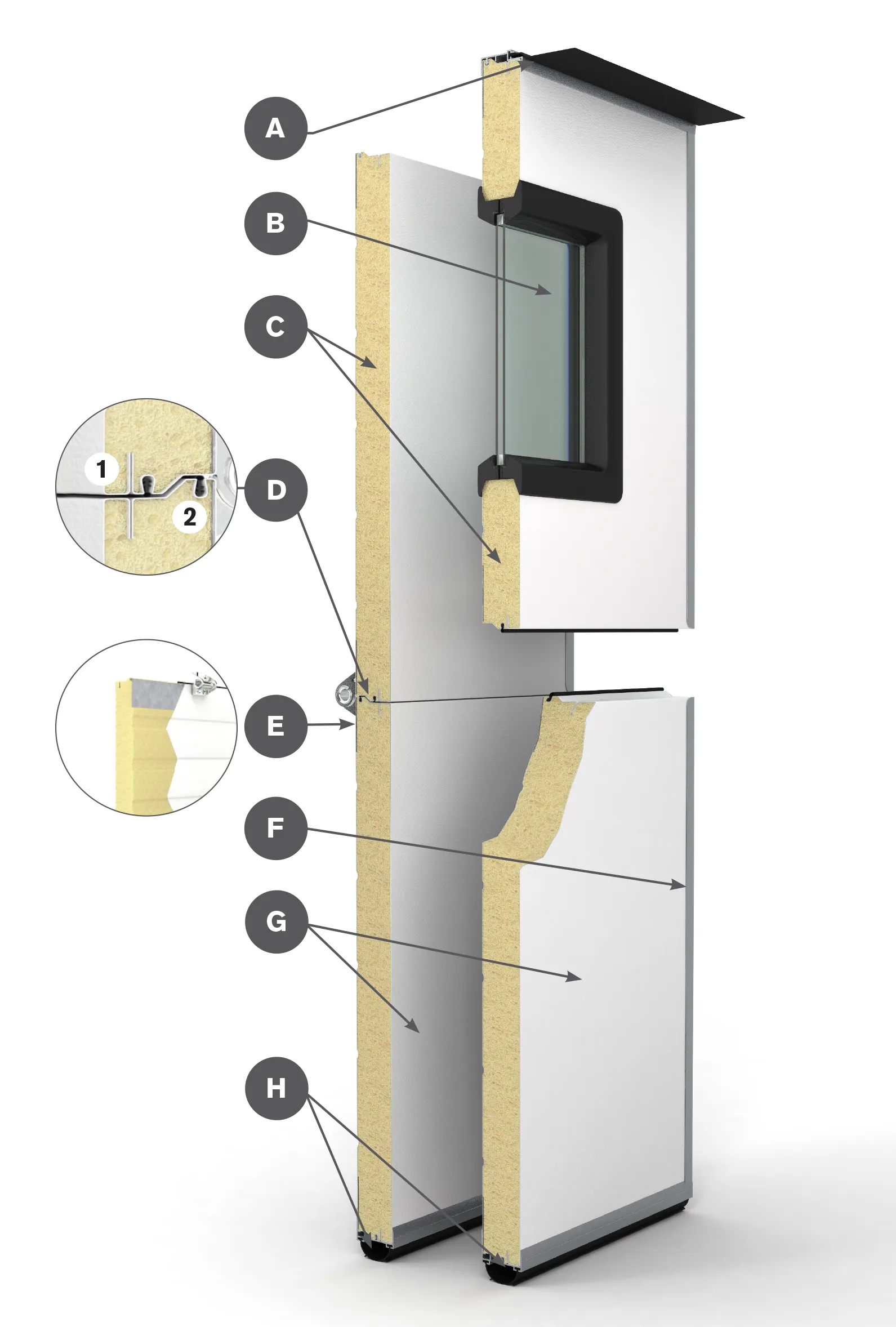

A: Flexible top weather seal (optional)
B: Glazing type - AA, B, CPL, D, E & fullview
C: Neufoam™ polyurethane core | R18.28
D: 1) Thermal break
D: 2) Two replaceable Weatherlock™ seals between sections
E: Continuous, top and bottom internal steel reinforcement for hardware mounting
F: 0.063" (1.6mm) galvanized end caps
G: Pre-painted, hot dipped galvanized steel sheet with flush finish
H: Bulb-shaped Weatherlock™ weather strip with continuous retainer the full width of door

Profiles

20-gauge 0.037" (0.94 mm) face sheet thickness

Colours

Glazing options

Clear or tempered glass sealed units, except AA which is dual acrylic
Set in moulded frame
Black or white frame colours available on all models
CPL and E models also come in brown

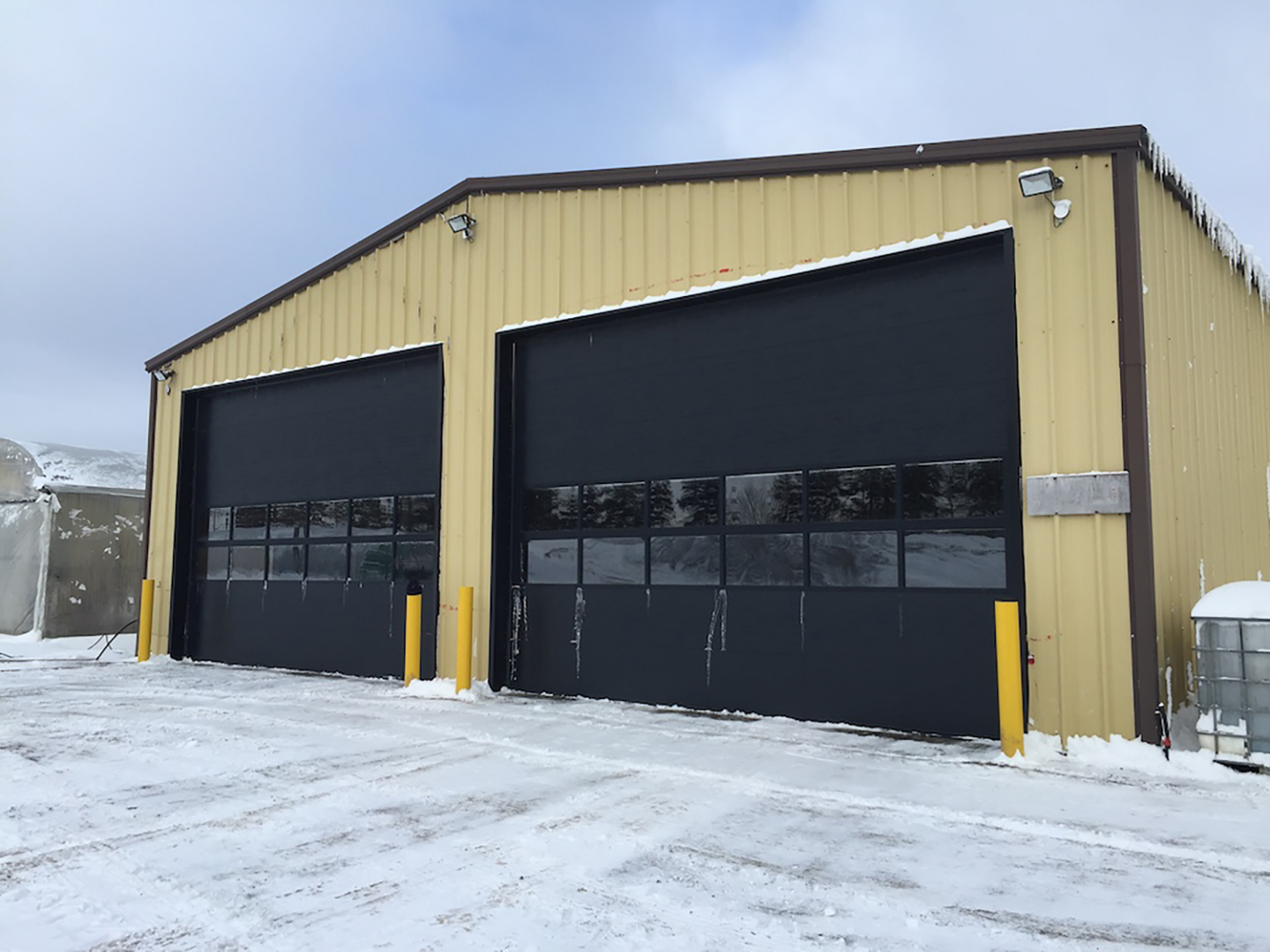

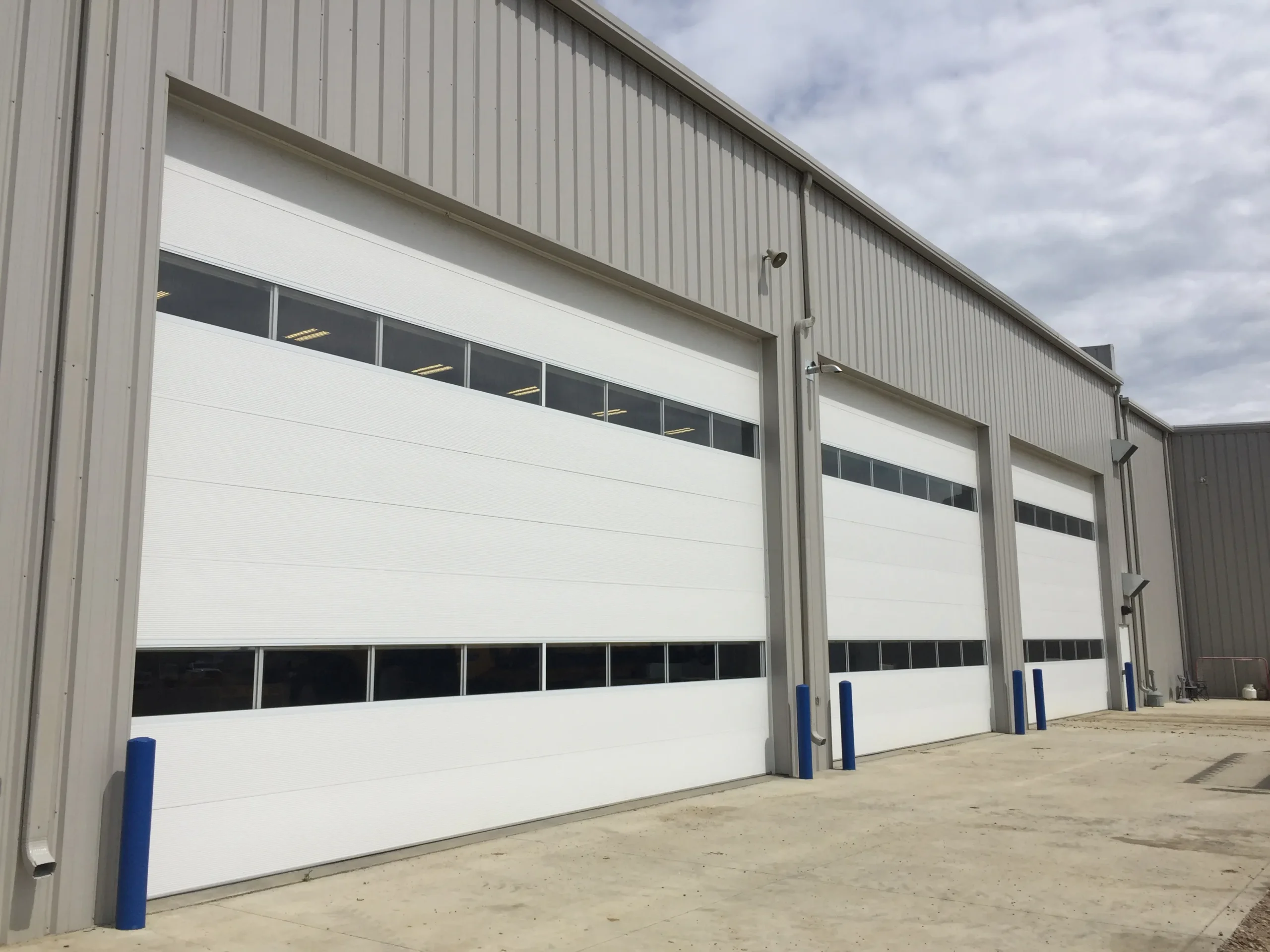

Fullview Sections

R-W can substitute any intermediate thermatite panel with glass or polycarbonate lenses framed by an aluminum rail and stile system. This allows for natural great exposure to natural light.

Glass fullview

Rail Finish: Clear Anodized, White, Black, Brown or custom ArmorBrite™ powder coating

Glass: 1/8" (3mm) and 1/2" (13mm) sealed or tempered units. Also available in clear lexan and 1/4" (6mm).
Obscure and Tinted glass available upon request.

Maximum Width: 24'-2"

Polycarbonate fullview

Rail Finish: Clear Anodized, White, Black, Bronze or custom ArmorBrite™ powder coating

Lens: 5/8" (16mm) three-wall polycarbonate and 1/4" (6mm) clear lexan

Lens Colours: Clear, Dark Bronze, Western Bronze, White Opal, Green or Blue

Maximum Width: 30'-2"
(For larger sizes please consult an R-W dealer)

Door opening dimensions

Max Door Opening Height | 22' (6706mm)*

Door Opening Height	Sections High
7'-1" to 8'-1" (2159mm to 2464mm)	4
8'-2" to 10'-1" (2489mm to 3073mm)	5
10'-2" to 12'-1" (3099mm to 3683mm)	6
12'-2" to 14'-1" (3708mm to 4293mm)	7
14'-2" to 16'-1" (4318mm to 4902mm)	8
16'-2" to 18'-1" (4928mm to 5512mm)	9
18'-2" to 20'-1" (5537mm to 6121mm)	10
20'-2" to 22'-1" (6147mm to 6731mm)	11

Max Door Opening Width | 38'-2" (11,633mm)*

Door Opening Width	Max # of windows
8'-0" to 9'-2" (2438mm to 2794mm)	2
9'-3" to 12'-2" (2819mm to 3708mm)	3
12'-3" to 16'-2" (3734mm to 4928mm)	4
16'-3" to 19'-2" (4953mm to 5842mm)	5
19'-3" to 24'-2" (5867mm to 7366mm)	6
24'-3" to 28'-2" (7391mm to 8585mm)	7
28'-3" to 32'-2" (8611mm to 9804mm)	8
32'-3" to 38'-2" (9830mm to 11,633mm)	9

*For larger sizes please consult an R-W dealer.

Hardware

At Richards-Wilcox, our exclusive linear hardware system has been optimized to work with today’s newest technology and panel construction, specifically for steel insulated doors. Our hardware features one of the greatest strength-to-weight ratio’s in the industry along with faster installation.
