The R600 insulated rolling steel door is the perfect choice for industrial, commercial, or climate-controlled applications
Max Door Size
Gauges
Options
Electric Operation: Easy fast motorized operation at a push of a button (motor mounting plates available upon request).
Slide Bolt Locks: Dual steel slide bolt locks attached to bottom suitable for padlocks (padlocks by other). Standard for manual or push-up operation.
Vision Panels: 5" x 3/4" cut out spaced approximately 3" apart and covered with clear Lexan.
Windload: Available design to +/- 50 PSF for 16' wide (22-gauge). Windload varies by size and model; for windload availability on larger sizes contact an R-W dealer.
High Cycle Springs: Available in 50,000 cycles and 100,000 cycles.

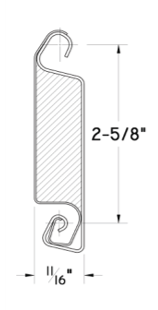

Slat Profile
*Powder coat finish is available in a variety of color options. 40-year film integrity and a 35-year no-chalk/no-fade limited paint warranty.
R600
Slats
24, 22, 20, or 18-gauge are manufactured from commercial grade galvanized steel and coated with super durable polyester paint that is backed by a 40-year film integrity and 35-year no-fade limited paint warranty.
*Insulation to be 5/8" polystyrene foam. Effective insulating value to be R=7.2 (polyurethane optional).
Drum/Axle Assembly
Barrel to be a steel pipe of diameter and wall thickness to restrict maximum deflection to .03" per foot door width. Springs to be oil tempered grease packed helical torsion type designed to cycle 25,000 times. Springs are to be mounted on a cold rolled steel inner shaft. End Bearing to be self-lubricating ball bearings.
Guide Assembly
Guide angles to be 3/16" minimum thickness structural steel with 30" service cutout and removable headstops. Guide depth to provide slat penetration adequate to satisfy specified wind loading.
Guide Weatherseal
One-piece vinyl weather seal attached to door guide on the non-coil side (brush seal with retainer available upon request).
Bottom Bar
Curtain to be reinforced with a bottom bar consisting of two 2" x 2" x 1/8" structural steel angles (depending on model and size) with PVC bulb astragal.
Endlocks
Each end of alternate slats to be fitted with endlocks to provide a wearing surface in the guides and to maintain slat alignment. Fastened with 3/16" rivets. Windlocks provided on larger sizes.
Hoods
24-gauge galvanized steel with baked epoxy primer and/or baked polyestertopcoat and designed to enclose door coil. Reinforcing to be 1/4" thick steel brackets for door over 16’0" wide. Hood Baffle is 8" wide PVC rubber riveted to the inside of the hood.
Bracket Assembly
Bracket plates to be 1/4" minimum thickness steel plate and enclose ends of barrel assembly. Drive End Bracket Plate to be filled with a self-aligning sealed ball bearing.
Hand Chain Lock
Lockable bracket mounted on guide angle or wall suitable for padlocking.
Chain Hoist
Drive to consist of roller chains and sprockets. Hand chain to be galvanized machine link.
