Landmark Briarcrest

Extra Large Windows With Carriage House Style

The Landmark Briarcrest Garage Door features a 24" (610mm) top section showcasing larger windows and a recessed panel design for a carriage house look. The perfect balance between exceptional beauty and enduring quality, a Briarcrest garage door will transform your home from ordinary, to extraordinary.

carriage house | insulated | r-value 18

What’s r-value? Learn here.

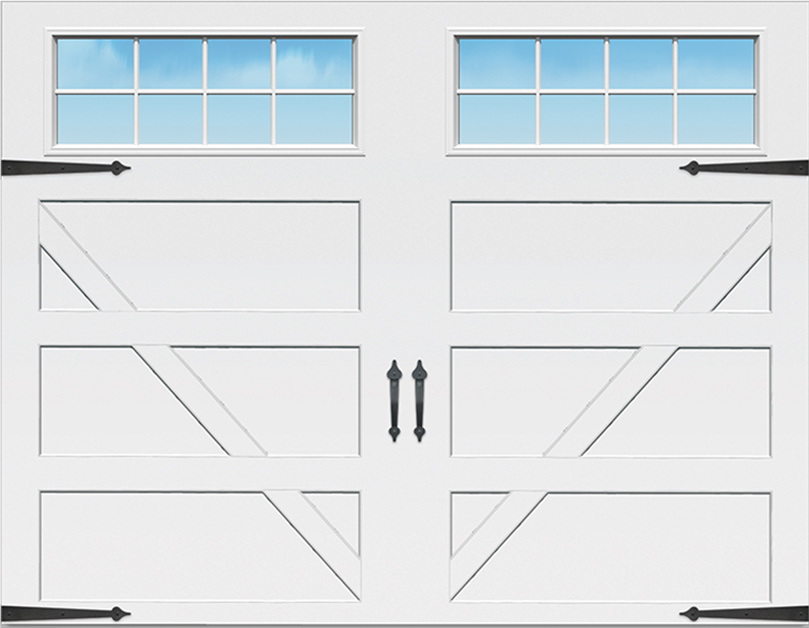

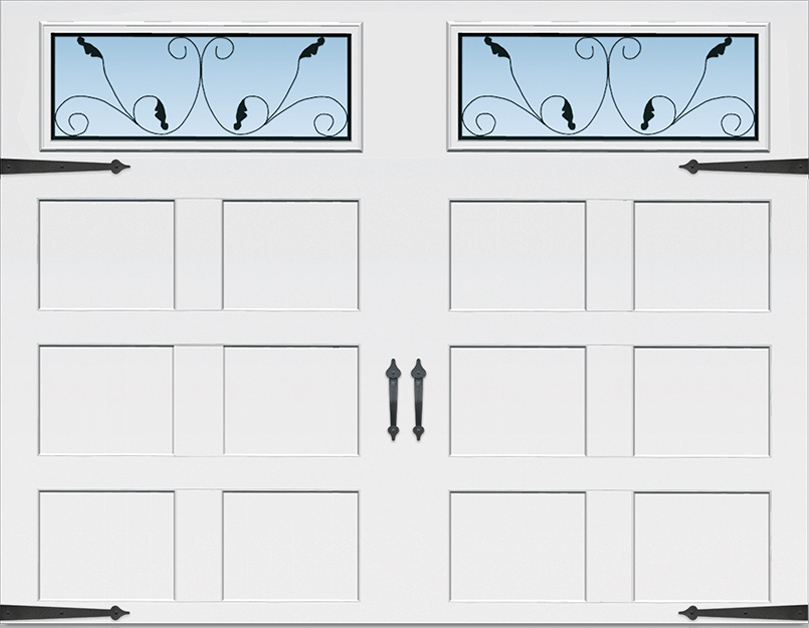

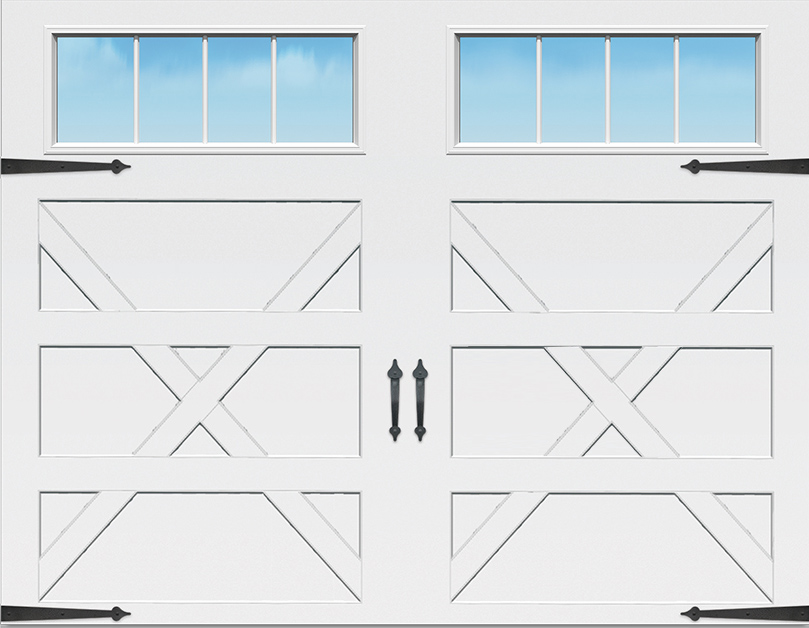

Briarcrest garage door panel options

Click on the panel to expand

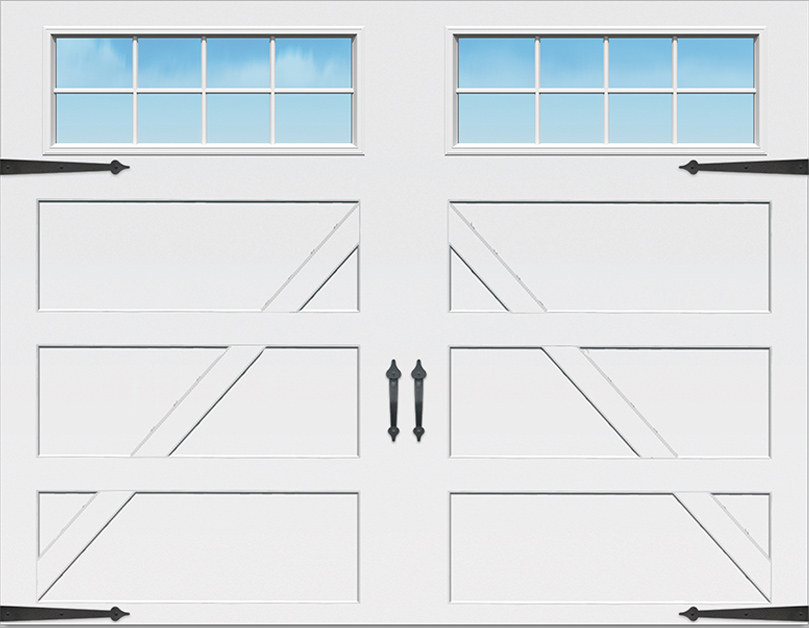

A-Buck, V-Buck and X-Buck styles are not available for all door heights.

Decorative hardware does not come standard.

All panel styles feature a Woodgrain embossed texture.

White
Almond
Desert Tan
Sandstone
Bronze
Brown
Slate Grey
Café
Iron Ore
Black

Window options

Clear

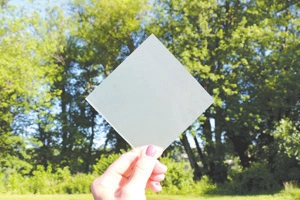

Satin

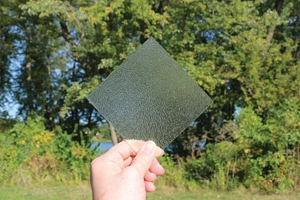

Obscure

Available in insulated sealed units, non-tempered only.

Rectangle | 43.5" x 17"

4 Pane
4 Over 4
Wrought Iron
Clear

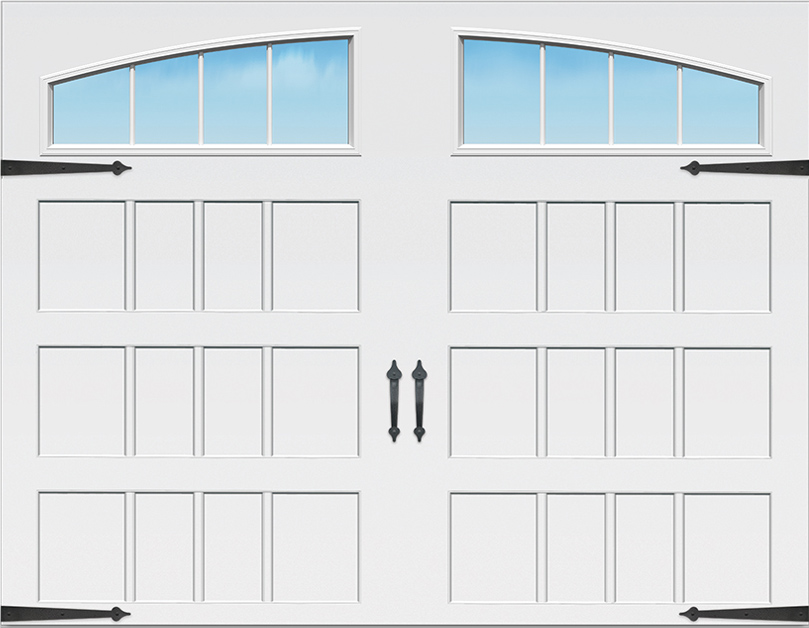

Two-Piece Arch | 43.5" x 17"

4 Pane
4 Over 4
Wrought Iron
Clear
White
Almond
Desert Tan
Sandstone
Bronze
Brown
Café
Slate Grey
Iron Ore
Black

Frames on the inside of the door are white.

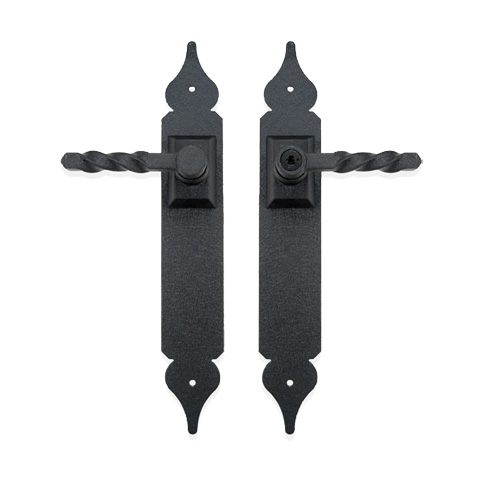

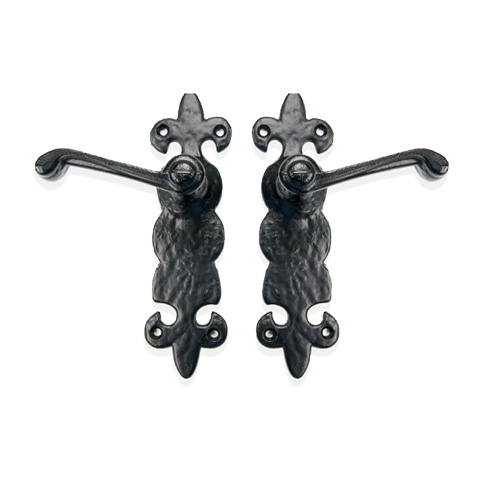

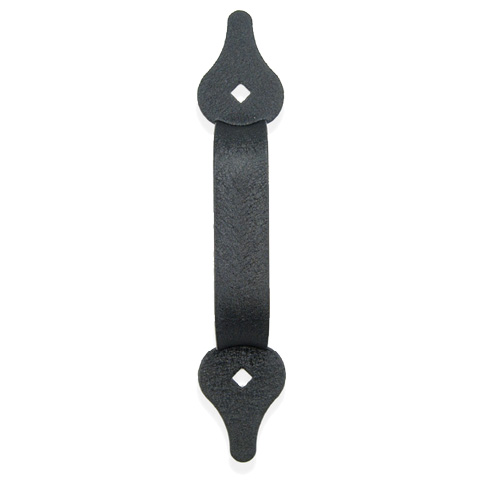

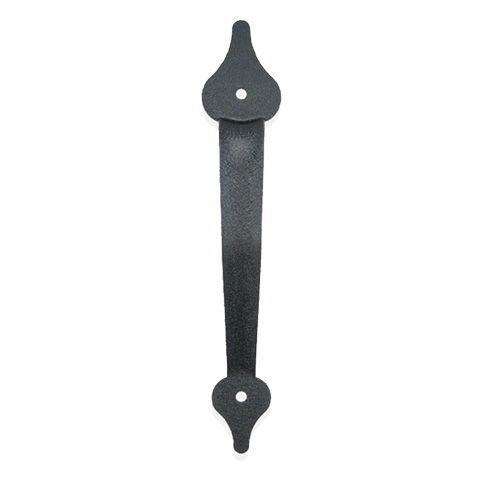

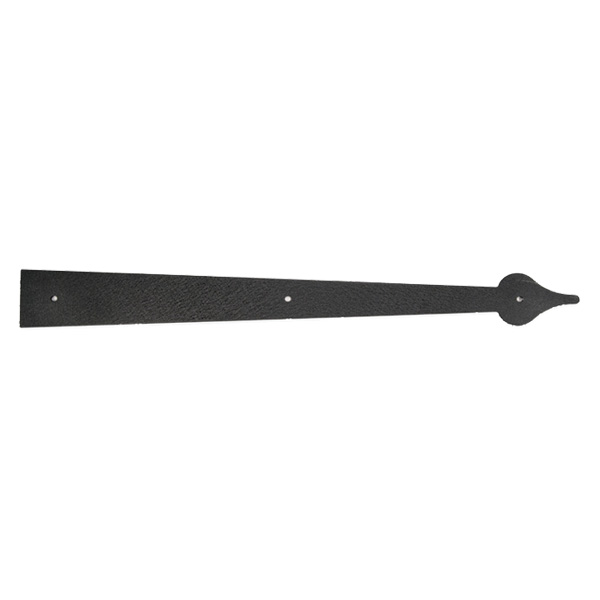

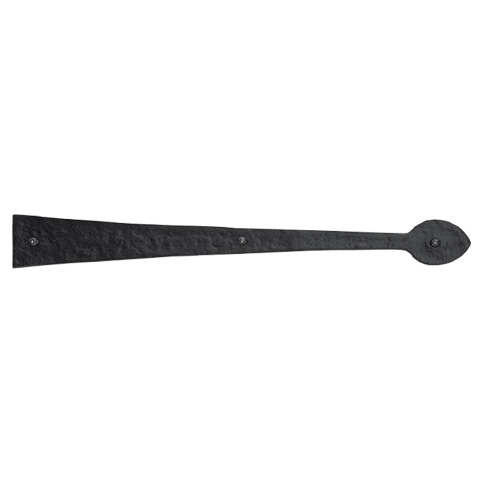

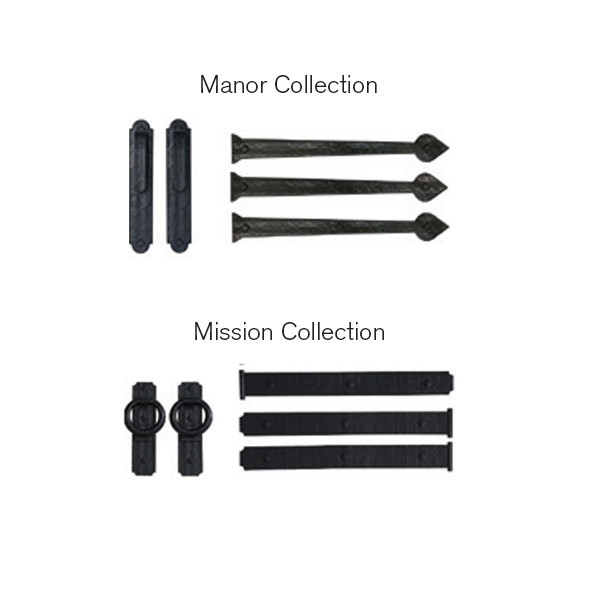

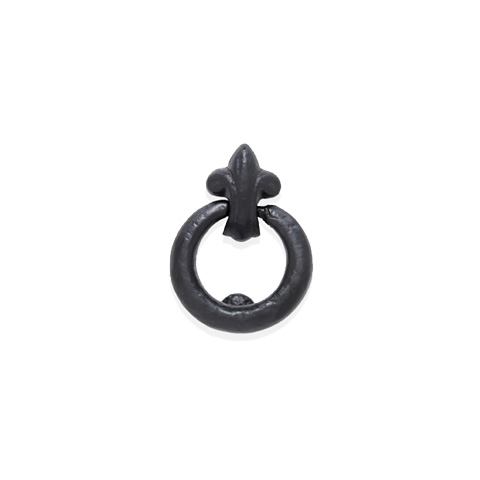

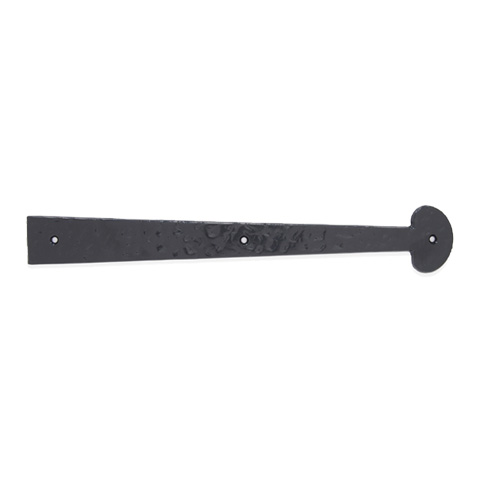

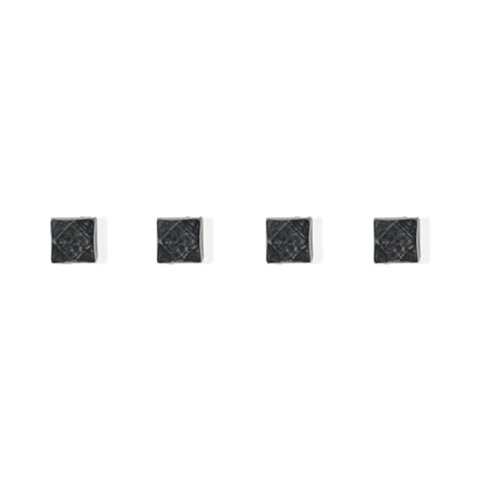

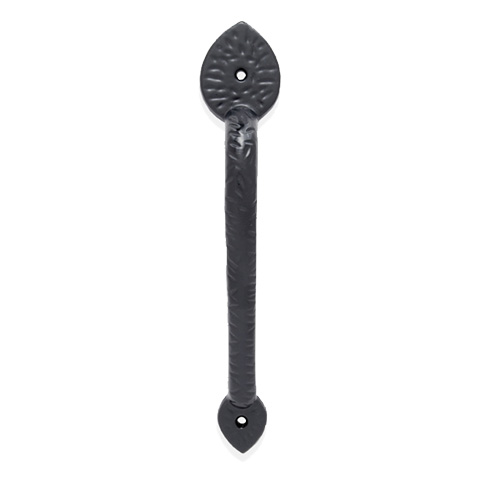

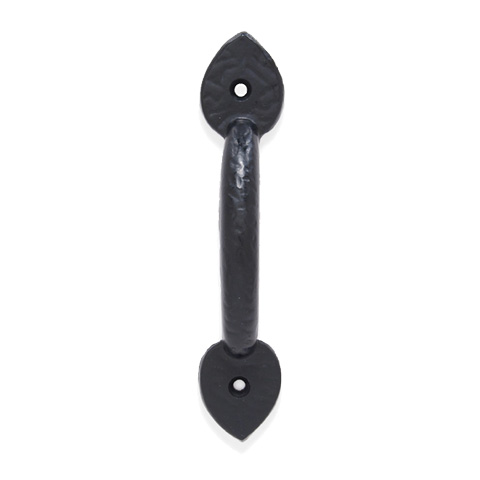

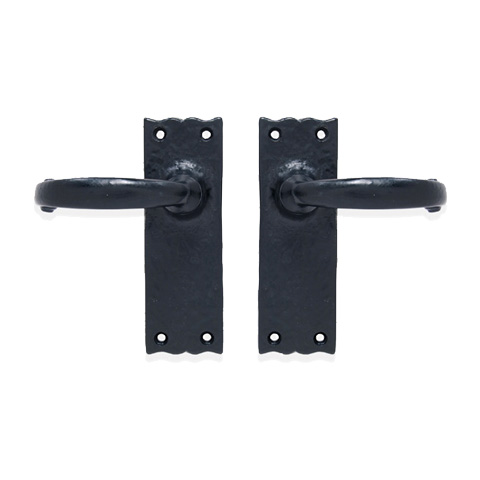

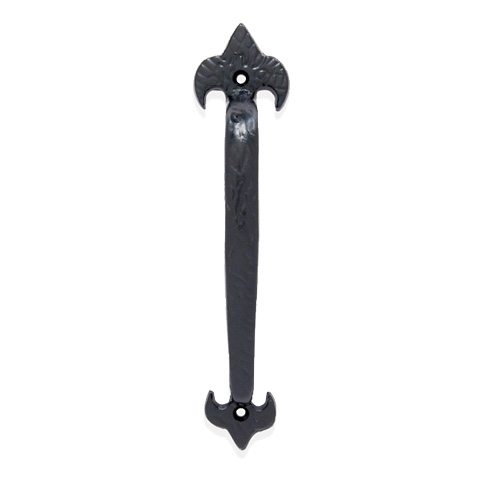

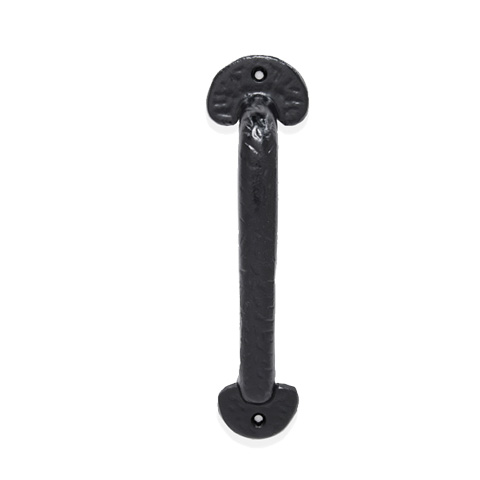

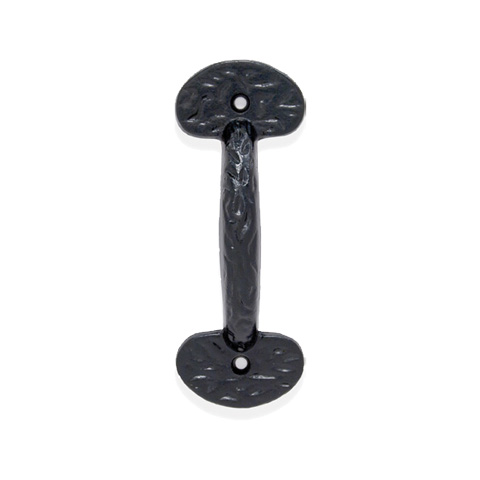

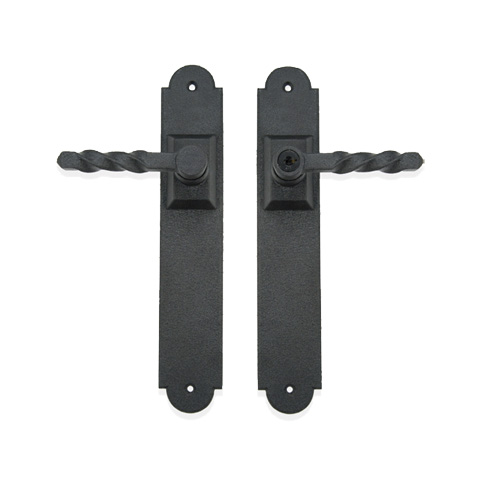

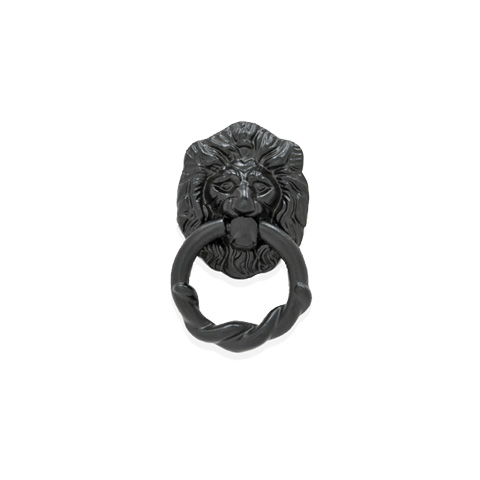

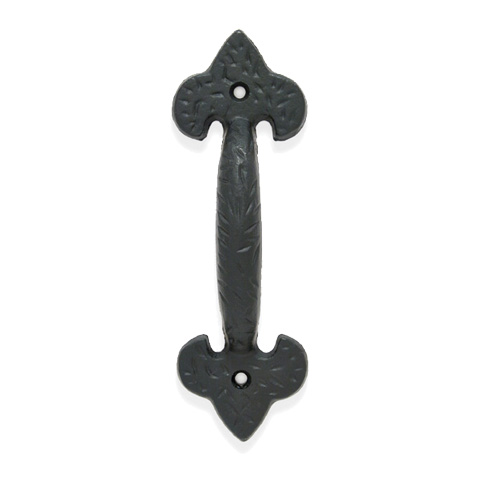

Decorative options

Click to expand the image

R-W Hardware Packages

Available in the following headroom configurations:
High lift | Standard lift 12" radius | Standard lift 15" radius | Low headroom front-mount | Low headroom rear-mount

Standard hardware

  • 10,000-cycle torsion spring
  • Brackets and flags riveted to the verticals
  • Horizontal angle riveted to horizontals
  • Bearing plate with press in bearing
  • White nylon 11 BB rollers
  • 14-gauge hinges
  • 16-gauge vertical and horizontal track
  • Full-length horizontal angle on double doors
  • 5-year warranty

Standard hardware plus

  • 20,000-cycle torsion spring
  • Pre-assembled, bolt together track sets
  • White nylon 11 BB rollers
  • 14 gauge hinges
  • 14 gauge vertical and horizontal track
  • Features a locking collar bearing on single spring doors
  • Limited Lifetimer™ hardware warranty

Why Upgrade to Hardware Plus?

Upgrade to Hardware Plus for enhanced durability, smoother performance and a longer-lasting garage door system.

Double the Spring Life

20,000-cycle torsion springs provide twice the cycle life of our standard springs—that means more opens and closes before replacement may be needed.

A Better Fit for Your Opening

Bolt-together track sets provide greater adjustability during installation, helping your installer achieve a better fit when garage walls or openings aren’t perfectly straight.

Stronger, More Durable Tracks

Heavier-gauge steel provides added strength and durability, helping your track system stand up to years of everyday use.

Enhanced Warranty Coverage

Hardware Plus is backed by a Limited Lifetimer™ warranty*, providing coverage for as long as the original purchaser owns the home.

*Springs are not included in the Limited Lifetimer™ warranty. See product warranties for full coverage details.
