P175/P175T SECTION DIMENSIONS
- Section Thickness 1 3/4″ (45mm)
- Section Height 21″ & 24″ (533mm & 610mm)
- Basic Windload: 8′-0″ – 16′-2″ (2438mm – 4877mm)
- 15 psf Design: 8′-0″ – 24′-2″ (2438mm – 7366mm)
- Custom Door Width: Up to 30′-2″ (9195mm)
The external side of the Polycarbonate is protected with a coextruded layer warranting resistance to atmospheric agents and U.V. rays.
Thickness: 5/8″ (16mm)
Weight: 0.553lbs/sq ft (2.69 kg/sq m)
R-Factor: 2.500 ft2 hF/Btu
U-Factor: 2.271 W/m2K
Fire Reaction: ASTM E84-01 Flame spread and smoke. Developed: Class A.
Solar Heat Gain Coefficient: Clear: 75; Bronze: 57; White: 63
Stock Colours: Clear, Dark Bronze, Western Bronze
Optional Colours: Green, Blue, White
Fabricated from 6063-T6 aluminum alloy extrusions, extrusion thickness 0.063″ (1.6mm) thick, and 0.090″ (2.18mm) thick at hardware mounting locations.
End stiles: 2 1/2″ (64mm) wide aluminum; Double end stiles for doors over 16′-2″ (4928mm) wide
Centre stiles: 3″ (76mm) wide aluminum
Pair of meeting rails: 4 1/2″ (114mm) high aluminum
Top rail: 2 3/16″ (56mm) high aluminum
Top rail: 2 9/16″ (65mm) high aluminum
Stock Colours: Clear Anodized, Bronze, White

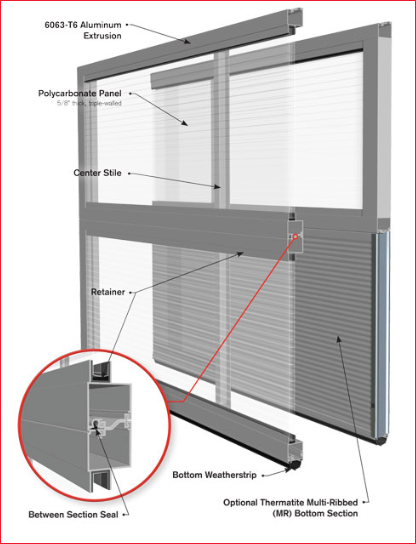

OPTIONAL THERMATITE MULTI-RIBBED (MR) BOTTOM SECTION (P175T)
Insulated sections fabricated from pre-painted, hot dipped galvanized, steel sheet; with rigid polyurethane insulation core, CFC and HCFC free, face sheet stucco embossed and rib reinforced.
R-Factor: 16.000 ft2 hF/Btu
U-Factor: 0.355 W/m2K

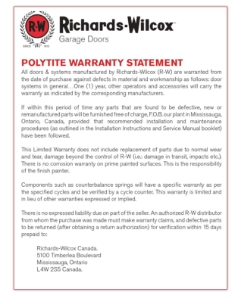

Polytite Panels: 10 years against breakage, excessive yellowing and loss of light transmission
Materials and workmanship: 1 year
Full length retainer and bulb weather strip minimize air flow and ensure weather-tightness at the base of your door.
Doors are constructed to withstand wind load specified in ANSI/DASMA 108. Linear style trusses are provided according to door size. Additional trussing can be provided for higher wind load applications.
Roll formed from commercial galvanized steel. Vertical tracks sloped to ensure weather tight seal. Horizontal track curve available in 12″ (305mm) or normally provided 16″ (406mm) radius.
Bolted type, field adjustable, rib reinforced, stamped from 0.123″ (3.1 mm) thick commercial galvanized steel.
Ten ball bearings provide years of smooth and quiet operation. 7/16″ (11mm) diameter standard stem, long stem on doors over 16’-2″ (4928mm) wide.
Helically wound torsion springs manufactured from oil tempered spring wire, stress relieved, minimum 10,000 cycles. Aluminum die-cast grooved drums. Flexible 7 x 19 construction aircraft type galvanized cables with 5:1 safety factor. Higher cycle available upon request.
72″ (1829 mm) long or 90″ (2286mm) for 3″ hardware.
Linear type, fabricated from 0.078″ or 0.106″ (2 or 2.7mm) thick zinc plated steel with embossments designed to resist higher load and provide greater stability resulting in improved performance.
Top Roller Carrier
Fabricated from zinc plated steel designed to provide greater stability, field adjustable to ensure weather tight seal.
Linear type fabricated from 0.078″ or 0.106″ (2 or 2.7mm) zinc plated steel. Graduated type design to ensure weather tight seal.
1″ (25mm) diameter 0.078″ (2mm) tube or 1/8″ (3mm) wall keyed full length or 1″ (25mm) diameter cold rolled galvanized steel keyed full length.
Full height fabricated from galvanized steel, complete with bolt-on type bearings.
Interior slide bolt type.
Exhaust port: 3″ (76 mm) / 4″ (102mm) / 5″ (127mm) diameter
