Polytite P175

SECTIONAL POLYCARBONATE OVERHEAD DOORS

Ideal for service garages and suitable for industrial, agricultural, commercial, and institutional applications where a strong, lightweight, light-transmitting door is desired.

P175 details

Glazing & finish options

Door opening dimensions

Hardware

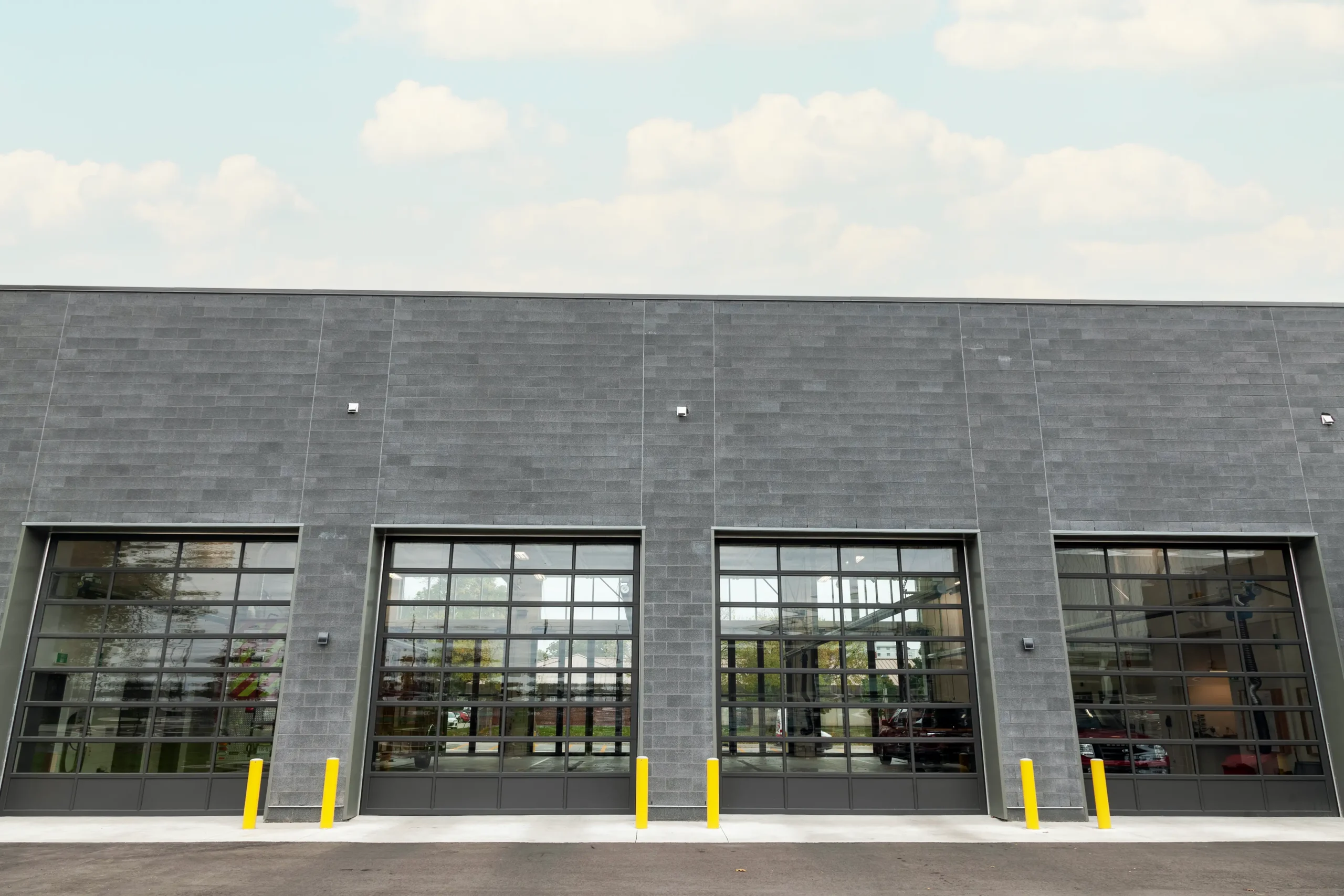

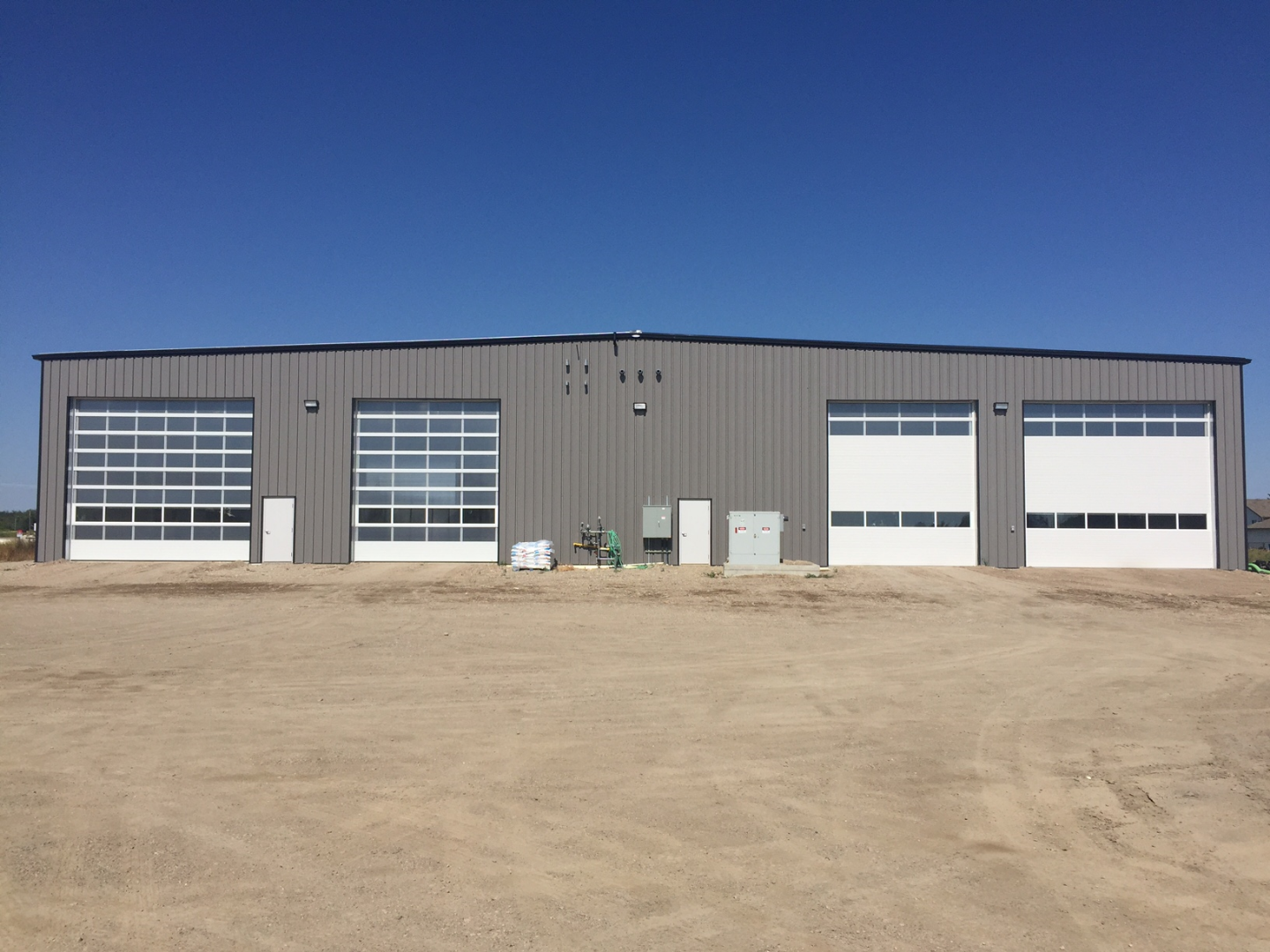

Gallery

Documents

Thermatite Bottom Section: Insulated section with a Neufoam™ polyurethane core. Fabricated from pre-painted, hot dipped galvanized, steel sheet. CFC and HCFC free. Face sheet comes stucco embossed and rib reinforced.

For doors 20'-2" and wider, the Thermatite bottom section is recommended forstructural integrity.

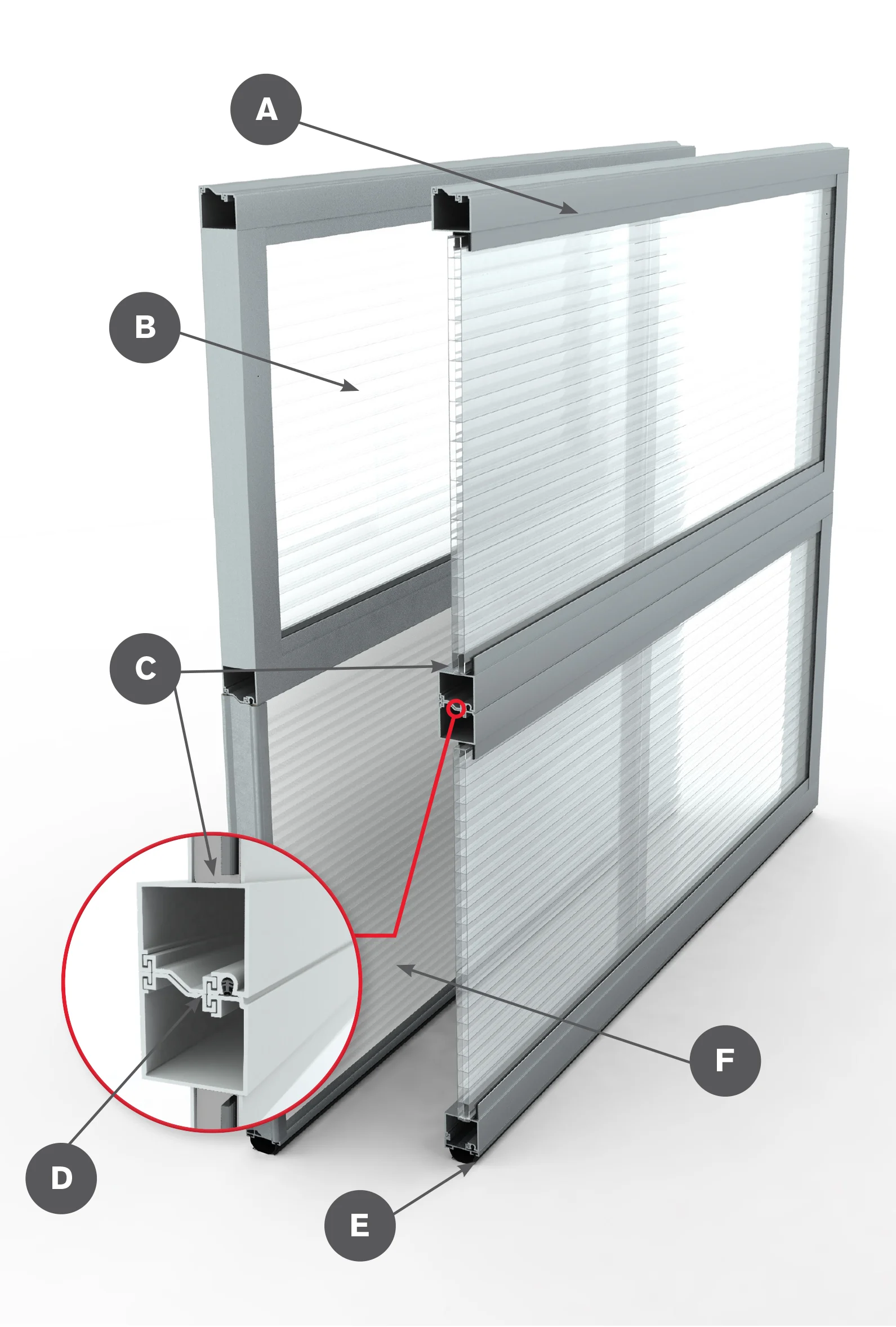

Polycarbonate Panelling

The external side of the panel is protected with a coextruded layer warranting resistance to atmospheric agents and U.V. rays.

Weight: 0.553lbs/sq ft (2.69 kg/sq m)
R-Factor: 2.500 ft2 hF/Btu
U-Factor: 2.271 W/m2K
Fire Reaction: ASTM E84-01 flame spread & smoke
(developed: class A)
Solar Heat Gain Coefficient: Clear – 75%
Light Transmission: Clear – 74%

Stiles & Rails

Fabricated from 6063-T6 aluminum alloy extrusions, extrusion thickness 0.063" (1.6mm) thick, and 0.090" (2.18mm) thick at hardware mounting locations.

End Stiles: 2 1/2" (64mm) wide aluminum; double end stiles for doors 16'-3" (4953 mm) wide & over.
Centre Stiles: 3" (76mm) wide aluminum
Pair of Meeting Rails: 4 1/2"(114mm) high aluminum
Top Rail: 2 3/16" (56mm) high aluminum
Bottom Rail: 2 9/16" (65mm) high aluminum

Reinforcement for Required Windload
Reinforcement is provided as required for wind load, with full-width integral horizontal trusses at meeting rails and galvanized steel trusses where required.

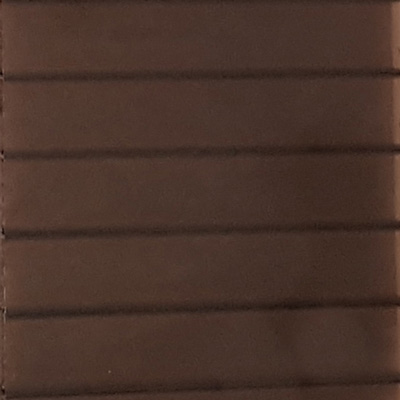

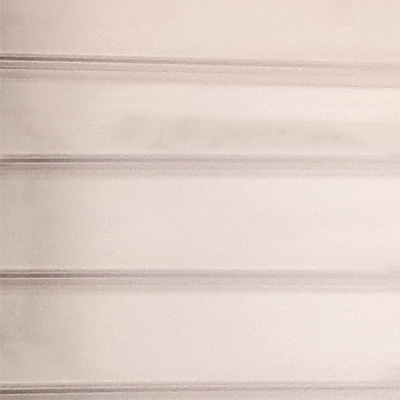

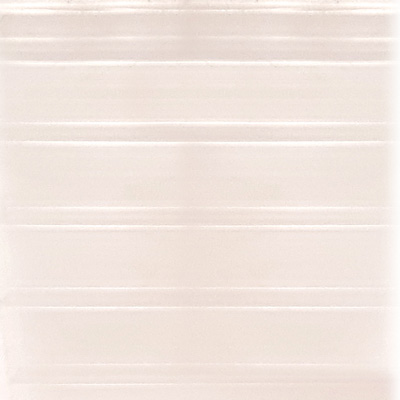

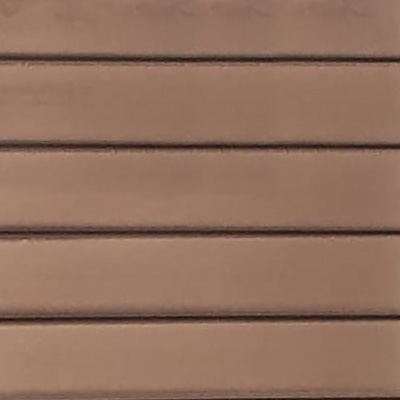

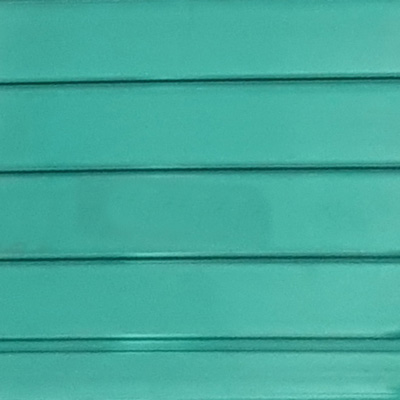

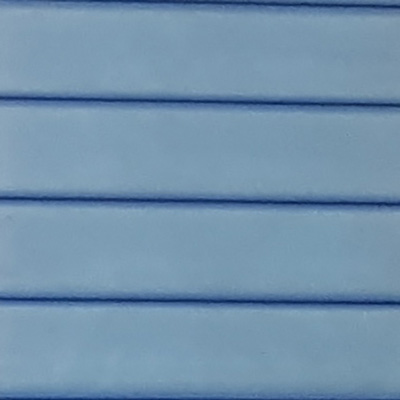

Glazing & Finish Options

Optional: Orange Peel lenses are available in Clear or Bronze.

*Available upon request.

*Polytite door rails and stiles can be powder coated in a variety of 188 custom colours.

Door Opening Dimensions

Max Door Opening Height | 18' (5512 mm)*

Door Opening Height	Sections High
7'-1" to 8'-1" (2159mm to 2464mm)	4
8'-2" to 10'-1" (2489mm to 3073mm)	5
10'-2" to 12'-1" (3099mm to 3683mm)	6
12'-2" to 14'-1" (3708mm to 4293mm)	7
14'-2" to 16'-1" (4318mm to 4902mm)	8
16'-2" to 18'-1" (4928mm to 5512mm)	9

Max Door Opening Width | 24' 2" (7366)*

Door Opening Width	Max # of stiles
Up to 9'-2" (2794mm)	1
9'-3" to 12'-2" (2819mm to 3708mm)	2
12'-3" to 16'-2" (3734mm to 4928mm)	3
16'-3" to 19'-2" (4953mm to 5842mm)	4
19'-3" to 24'-2" (5867mm to 7366mm)	5

*For larger sizes please consult an R-W dealer.

Hardware

At Richards-Wilcox, our exclusive linear hardware system has been optimized to work with today’s newest technology and panel construction. Our hardware features one of the greatest strength-to-weight ratio’s in the industry along with faster installation.
