Thermatite T175/T175U

OVERHEAD SECTIONAL INSULATED STEEL DOOR

Our top selling industrial door with a reputation of durability, exceeding the expectations of daily use. The T175 offers the widest selection of quality features and options for most common commercial applications.

T175 details

Glazing

Fullview Sections

Door opening dimensions

Hardware

Gallery

Documents

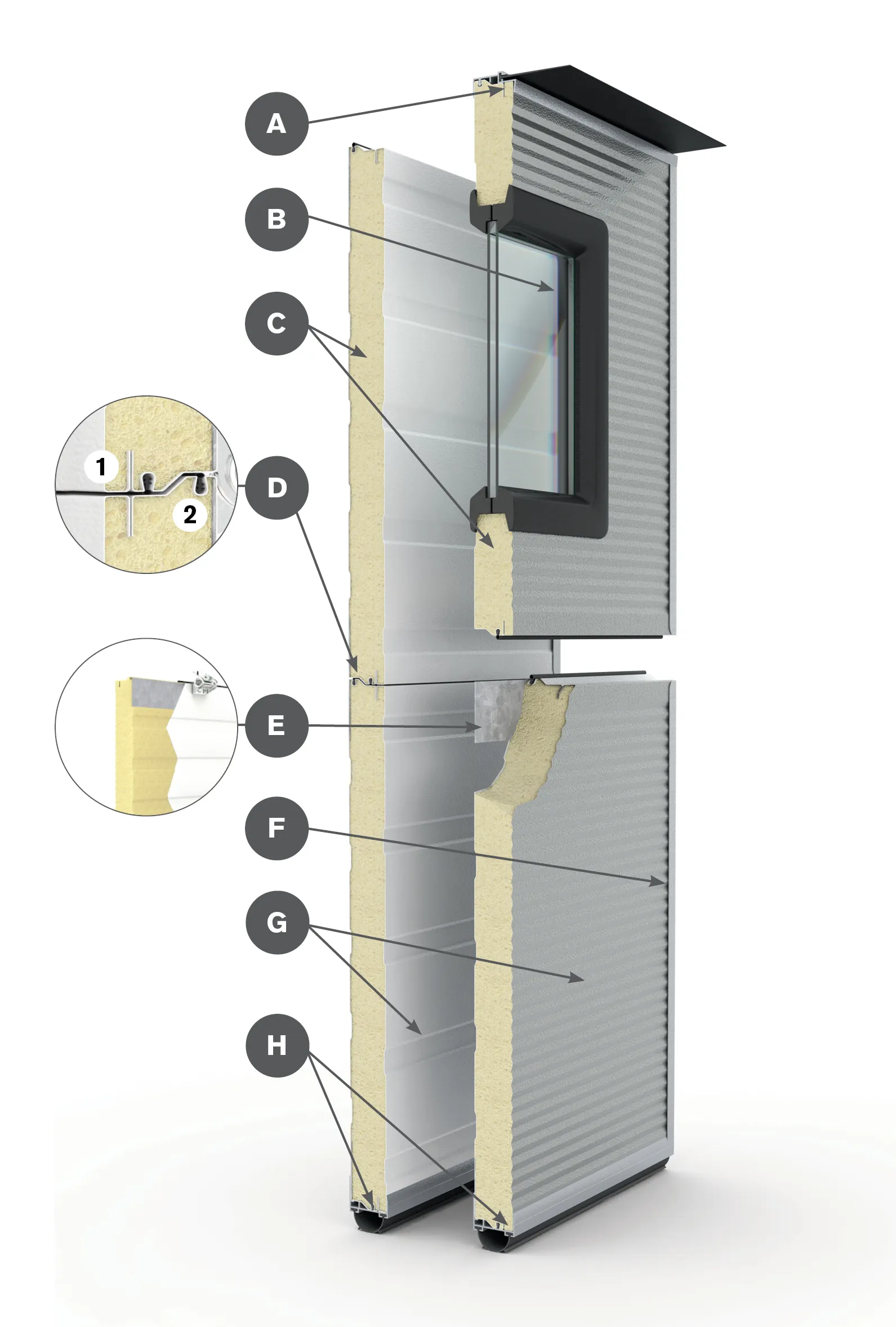

A: Flexible top weather seal (optional)
B: Glazing type - AA, B, CPL, D, E & Fullview
C: Neufoam™ polyurethane core | R16
D: 1) Thermal break
D: 2) Two replaceable Weatherlock™ seals between sections
E: Continuous, top and bottom internal steel reinforcement strip for hardware mounting
F: 0.063" (1.6mm) galvanized end caps
G: Pre-painted, hot dipped galvanized steel sheets or aluminum, stucco embossed and ribbed or multi-ribbed reinforced
H: Bulb-shaped Weatherlock™ weather strip with continuous retainer the full width of door

U-SERIES | T175U

E: Wider continuous, top and bottom internal steel reinforcement strip for Diamond Hinge mounting

G: Pre-painted, hot dipped galvanized steel sheets, stucco embossed and pencil grooved reinforced

Minimum Panel Length: 8' | Maximum Panel Length: 36'-2"

0.019" (0.48mm) face sheet thickness

Profiles

0.019" (0.48mm) face sheet thickness

Colours

Glazing options

Clear or tempered glass sealed units, except AA which is dual acrylic
Set in moulded frame
Black or white frame colours available on all models
CPL and E models also come in brown

Fullview Sections

R-W can substitute any intermediate thermatite panel with glass or polycarbonate lenses framed by an aluminum rail and stile system. This allows for natural great exposure to natural light.

Glass fullview

Rail Finish: Clear Anodized, White, Black, Brown or custom ArmorBrite™ powder coating

Glass: 1/8" (3mm) and 1/2" (13mm) sealed or tempered units. Also available in clear lexan and 1/4" (6mm).
Obscure and Tinted glass available upon request.

Maximum Width: 24'-2"

Polycarbonate fullview

Rail Finish: Clear Anodized, White, Black, Bronze or custom ArmorBrite™ powder coating

Lens: 5/8" (16mm) three-wall polycarbonate and 1/4" (6mm) clear lexan

Lens Colours: Clear, Dark Bronze, Western Bronze, White Opal, Green or Blue

Maximum Width: 30'-2"
(For larger sizes please consult an R-W wholesaler)

Door opening dimensions

Max Door Opening Height | 22' (6706mm)*

Door Opening Height	Sections High
7'-1" to 8'-1" (2159mm to 2464mm)	4
8'-2" to 10'-1" (2489mm to 3073mm)	5
10'-2" to 12'-1" (3099mm to 3683mm)	6
12'-2" to 14'-1" (3708mm to 4293mm)	7
14'-2" to 16'-1" (4318mm to 4902mm)	8
16'-2" to 18'-1" (4928mm to 5512mm)	9

Max Door Opening Width | 36'-2" (11024mm)*

Door Opening Width	Max # of windows
8'-0" to 9'-2" (2438mm to 2794mm)	2
9'-3" to 12'-2" (2819mm to 3708mm)	3
12'-3" to 16'-2" (3734mm to 4928mm)	4
16'-3" to 19'-2" (4953mm to 5842mm)	5
19'-3" to 24'-2" (5867mm to 7366mm)	6
24'-3" to 36'-2" (7391mm to 11,024mm)	7

*For larger sizes please consult an R-W wholesaler.

Hardware

At Richards-Wilcox, our exclusive linear hardware system has been optimized to work with today’s newest technology and panel construction, specifically for steel insulated doors. Our hardware features one of the greatest strength-to-weight ratio’s in the industry along with faster installation.
