THERMATITE™

NEUFOAM™ INSULATED POLYURETHANE SECTIONAL OVERHEAD DOORS

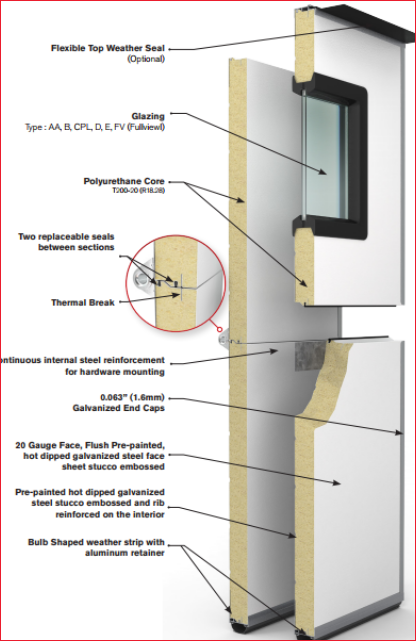

Thermatite Door Systems are built stronger with Neufoam™ technology – a continuous foaming process that renders cavity-free sections. No air pockets inside the panel ensures superior adhesion of our CFC/HCFC-free polyurethane insulation to the steel skin, preventing delamination and providing exceptional structural integrity. The door has a higher strength-to-weight ratio, offers a better thermal barrier (higher R-Value) and resists deflection. Sections feature thermal breaks and two continuous replaceable seals to minimize air flow.

VIEW THERMATITE PRODUCT CATALOGUE

T150

  • 1.5″ Neufoam™ Insulated Polyurethane Door
  • Shiplap Section Joint
  • Available in 3 colours and two panel styles.
VIEW SELL SHEET VIEW SPECIFICATIONS

T175

  • 1 3/4″ Neufoam™ Insulated Polyurethane Door
  • Shiplap Section Joint
  • Available in 3 colours and two panel styles.
VIEW SELL SHEET VIEW SPECIFICATIONS

T200

  • 2″ Neufoam™ Insulated Polyurethane Door
  • Shiplap Section Joint
  • Available in 1 colours and two panel styles
VIEW SELL SHEET VIEW SPECIFICATIONS

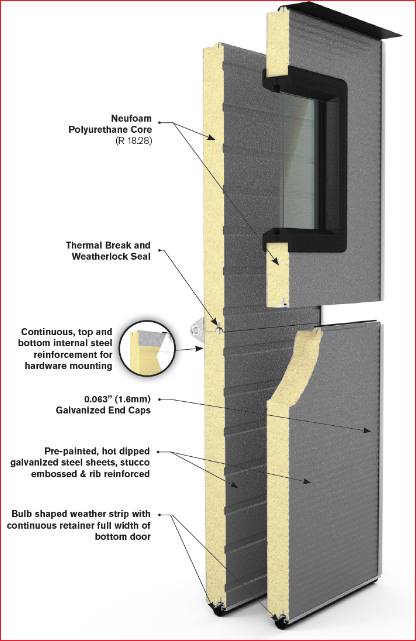

T200C

  • 2″ Neufoam™ Insulated Polyurethane Door
  • Tongue & Groove Section Joint
  • Available in 8 colours and two panel styles.
VIEW SELL SHEET VIEW SPECIFICATIONS

T200-20

  • 2″ Neufoam™ Insulated Polyurethane Door
  • Featuring 20 Gauge Exterior Steel Sheet
  • Shiplap Section Joint
VIEW SELL SHEET VIEW SPECIFICATIONS

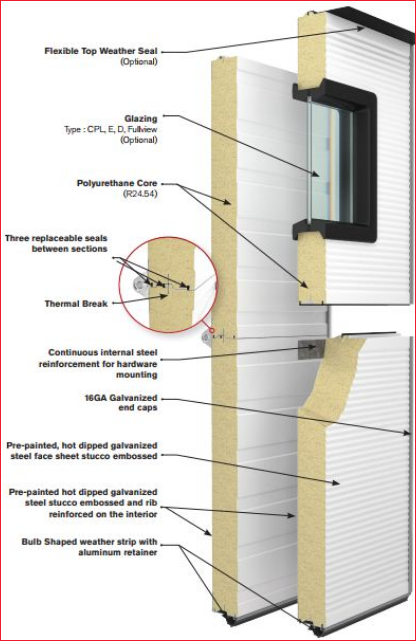

T300

  • 3″ Neufoam™ Insulated Polyurethane Door
  • Tongue and Groove Section Joint
  • Available in 1 colour and two panel styles.
VIEW SELL SHEET VIEW SPECIFICATIONS

Thermatite Door Systems

Installed with our highest quality hardware components, Thermatite Doors are engineered to provide many years of worry-free operation and are suitable for a wide range of applications.

  • SECTION DETAILS
    SECTION THICKNESS
    • T150-MR / T150 1 1/2″ (38mm)
    • T175-MR / T175 1 3/4″ (45mm)
    • T200A-MR / T200A 2″ (51mm)
    • T200-20 2” (51mm)
    • T300-MR / T300 (Total Door Thickness) 3″ (76mm)
    THERMAL VALUE OF SECTIONS
    • T150-MR / T150 R 13.21 ft2 hF/Btu
    • T175-MR / T175 R 16 ft2 hF/Btu
    • T200MR / T200 R 18.28 ft2 hF/Btu
    • T200-20 R 18.28 ft2 hF/Btu
    • T300-MR / T300 R 24.54 ft2 hF/Btu
    FACE SHEET PROFILE
    • T150-MR / T150 Multi-Ribbed / Ribbed
    • T175-MR / T175 Multi-Ribbed / Ribbed
    • T200MR / T200 Multi-Ribbed / Ribbed
    • T200-20 Flush / White
    • T300-MR / T300 Multi-Ribbed / Ribbed
    FACE SHEET THICKNESS
    • T150-MR / T150 0.016″ (0.41mm)
    • T175-MR / T175 0.019″ (0.48mm)
    • T200MR / T200 0.016″ (0.41mm)
    • T200A-MR / T200A 0.025″ (0.64mm)
    • T200-20 20 Gauge
    • T300-MR / T300 0.019″ (0.48″)
    MAXIMUM OPENING WIDTH
    • T150-MR / T150 29’-4″ (8941mm)
    • T175-MR / T175 36’-2″ (11024mm)
    • T200MR / T200 30’-2″ (9195mm)
    • T200A-MR / T200A 24’-2″ (7366mm)
    • T200-20 38’ 2” (11,633 mm)
    • T300-MR / T300 38′-2″ (11633mm)
    MAXIMUM OPENING HEIGHT
    • All models 22′ (6706mm)
  • COLOURS

    White

    Silver

    Brown

    T200C Colour Options:

    Almond

    Bronze

    Brown

    Slate Grey

    Desert Tan

    Sandstone

    Cafe

    Black

    Two coat, baked-on paint system on exterior side, primer and polyester finish coat.

    T150-MR / T150

    White / Silver / Brown

    T175-MR / T175

    White / Silver / Brown

    T200

    White

    T200A-MR / T200A

    White

    T300-MR / T300A

    White

    T200-20

    White

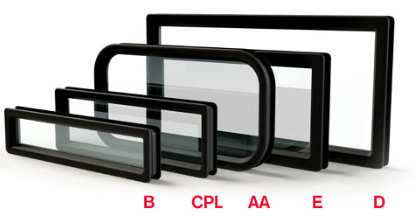

  • OPTIONAL GLAZING

    Glazing Options:

    Type Dimensions globales Frame Colour Description
    B 24″ x 6″
    610mm x 152mm    		 Black, White Clear glass sealed unit set in moulded frame.
    CPL 24″ x 8″
    610mm x 203mm    		 Black, White, Brown Clear glass sealed unit set in moulded frame.
    AA 26″ x 13″
    660mm x 330mm    		 Black, White Dual acrylic unit set in moulded frame.
    E 24″ x 12″
    610mm x 305mm    		 Black, White, Brown Clear glass sealed unit set in moulded frame.
    D 34″ x 16″
    864mm x 406mm    		 Black, White Clear glass sealed unit set in moulded frame.
    FV Full Section Width Full vision aluminum glass section – white, clear anodized* finish; 1/8″ (3mm), (6mm*) acrylic, polycarbonate, plain or tempered glass, or 1/2″ (13mm) sealed or tempered glass units.
  • STANDARD / OPTIONAL HARDWARE

    Standard Hardware

    Weatherstripping

    Full length retainer and bulb weather strip minimize air flow and ensure weather-tightness at the base of your door.

    Trussing

    Doors are constructed to withstand wind load specified in ANSI/DASMA 108. Linear style trusses are provided according to door size. Additional trussing can be provided for higher wind load applications.

    Track

    Roll formed from commercial galvanized steel. Vertical tracks sloped to ensure weather tight seal. Horizontal track curve available in 12″ (305mm) or normally provided 16″ (406mm) radius.

    Track Brackets

    Bolted type, field adjustable, rib reinforced, stamped from 0.123″ (3.1 mm) thick commercial galvanized steel.

    Rollers

    Ten ball bearings provide years of smooth and quiet operation. 7/16″ (11mm) diameter standard stem, long stem on doors over 16’-2″ (4928mm) wide.

    Counter Balance

    Helically wound torsion springs manufactured from oil tempered spring wire, stress relieved, minimum 10,000 cycles. Aluminum die-cast grooved drums. Flexible 7 x 19 construction aircraft type galvanized cables with 5:1 safety factor. Higher cycle available upon request.

    Horizontal Angle

    72″ (1829 mm) long or 90″ (2286mm) for 3″ hardware.

    Hinges

    Linear type, fabricated from 0.078″ or 0.106″ (2 or 2.7mm) thick zinc plated steel with embossments designed to resist higher load and provide greater stability resulting in improved performance.

    Top Roller Carrier

    Fabricated from zinc plated steel designed to provide greater stability, field adjustable to ensure weather tight seal.

    Roller Brackets

    Linear type fabricated from 0.078″ or 0.106″ (2 or 2.7mm) zinc plated steel. Graduated type design to ensure weather tight seal.

    Shafts

    1″ (25mm) diameter 0.078″ (2mm) tube or 1/8″ (3mm) wall keyed full length or 1″ (25mm) diameter cold rolled galvanized steel keyed full length.

    Head Plates

    Full height fabricated from galvanized steel, complete with bolt-on type bearings.

    Lock

    Interior slide bolt type.

    Mounting Fasteners

    Zinc plated.

    Optional Hardware

    • Combination PVC step plate and lift handle
    • Exhaust port: 3″ (76 mm) / 4″ (102mm) / 5″ (127mm) diameter
    • Flexible top weather strip for full width of door
    • Full height thermal break and anti-friction strip for galvanized end caps
    • Aluminum end stiles with full height jamb seal(Note: For T175-MR, T175, T175-20 only)
    • Pass doors: 32″ x 80″ (813mm X 2032mm) four section pass door available in doors up to 16.2’ (4928mm)(Note: *14.2’ (4381mm) for T150 and T200A)
  • ADDITIONAL INFORMATION

    Additional Information

    Click Here for detailed specifications per model including CAD files, SpecWizards® and LEED credit information.

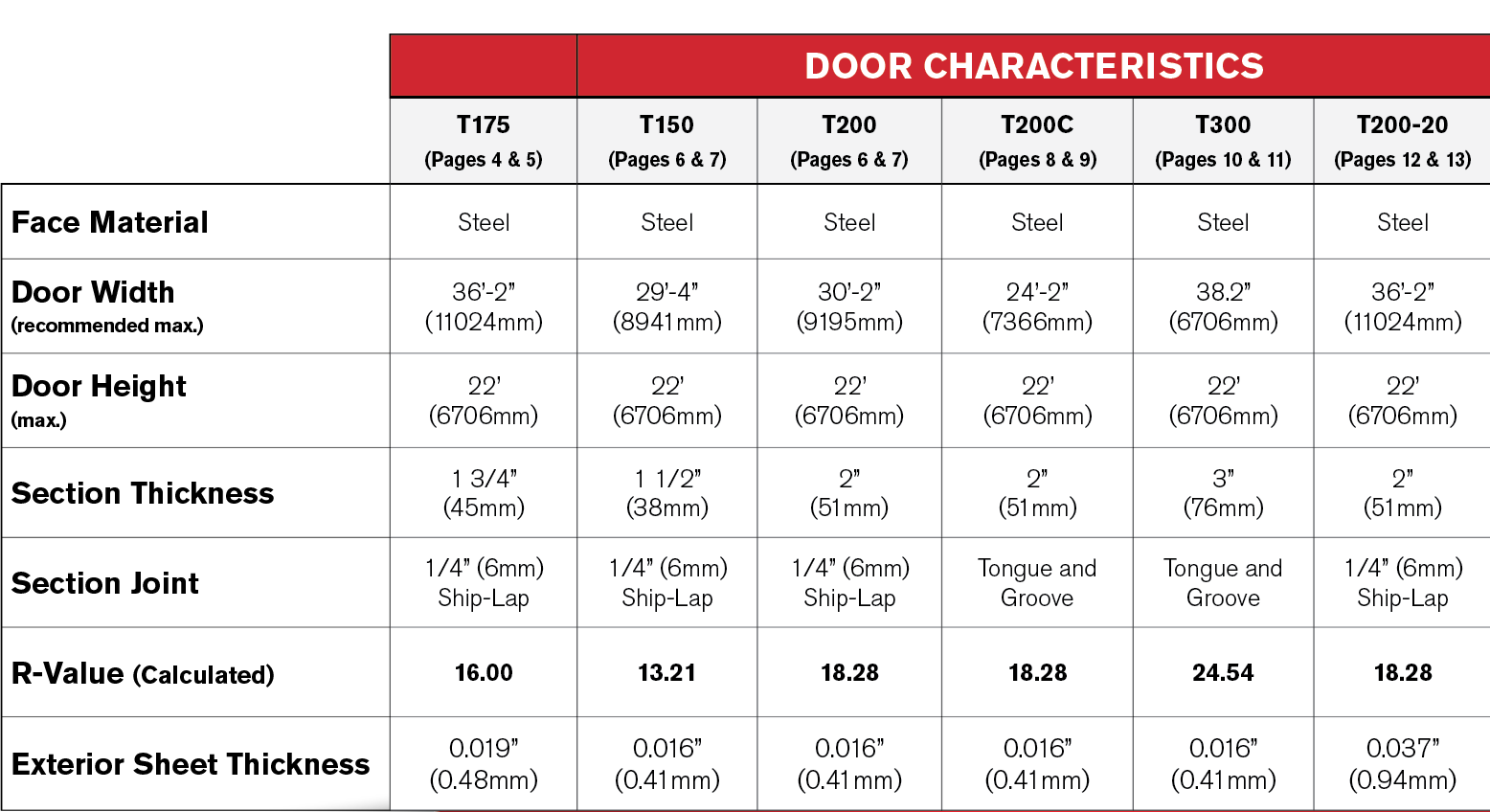

  • COMPARISON
  • WARRANTY

    • Find A Dealer Near You!

    A door is only as good as its installation. That’s why our doors are only installed by Authorized Dealers.

    FIND A DEALER

    The Richards-Wilcox Difference

    Since 1912

    Incorporated in 1912, Richards-Wilcox was the first company in Canada to introduce sectional overhead doors and establish nationwide distribution channels. In the 1970s, RW launched a full line of steel sectional doors. In the 1980s, we began production of a continuous polyurethane insulated section – one of only three lines of its kind in North America.

    The subsequent decades have brought continual improvements to our product offerings and manufacturing processes, including the addition of a full range of residential polyurethane insulated sectional doors. Celebrating our first centenary, RW is proud of our rich history of excellence. We are committed to be innovators of sectional door design and purpose to be the highest quality door systems manufacturer in the world

    Quality Production

    Every aspect of our manufacturing operation is subject to the highest standards. Our team of engineers is dedicated to researching state-of-the-art design and production methods. An in-house testing facility and uncompromising quality control inspections make certain that only premium products leave the premises. Using the best available materials and technology guarantees that the finished door system will be reliable, strong, and worry-free for years to come.

    Why Richards-Wilcox

    AUTHORIZED DEALERS

    A door is only as good as its installation. That’s why our doors are only installed by Authorized Dealers. This process ensures that every installation meets our standards of quality.

    LIFETIMER™ WARRANTY

    When you choose R-W, you’ve chosen the best garage door you can buy and we’ll back that up in writing with our Limited Life-Timer™ Warranty.

    Neufoam™

    In order to achieve the highest thermal values and stability, RW sections are evenly filled environmentally friendly CFC/HCFC-free Neufoam™. The higher density polyurethane insulation in a computer controlled continuous process provides uniform insulation, superior adhesion and excellent strength to the door panels.

    Click to learn more about the benefits of a Neufoam insulated door

    WeatherLock™ System

    Featuring our exclusive WeatherLock™ Section Joint, Dual Fin Triple Contact Weather Seal and Arctic Grade Bulb Shaped Bottom Seal with a Dual Contact aluminum retainer.

    TruBalance™ Drum System

    The patent pending TruBalance™ Drum System provides doors built with a heavy weighted glazed top section with up to an 87% better balance than industry standard.

    Click to see TruBalance™ Video

    Standard Hardware & Standard Hardware Plus

    We manufacture very beautiful doors. We also care about saving you the hassle and maintenance for many years to come. We have built our reputation on delivering exceptional quality. Our hardware items are manufactured to the highest standards in the industry.

    Click here for the R-W Hardware Poster

    Design A Door system will let you customize your door as you want!

    Build the Garage Door of your Dreams with R-W’s Design-A-Door Feature. Quickly Scroll through our myriad of models, styles and option and request a quote in a matter of minutes.

    DESIGN NOW!

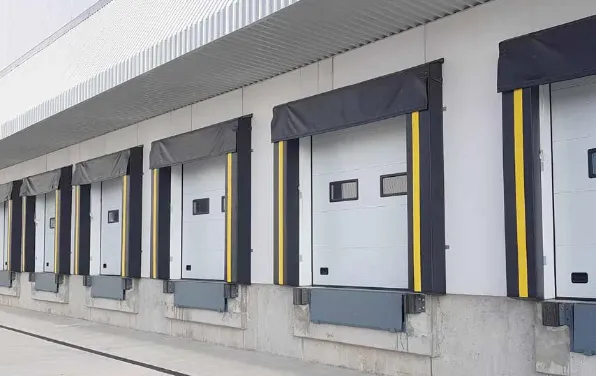

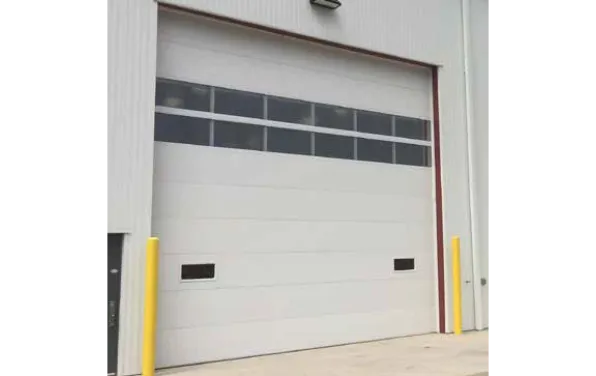

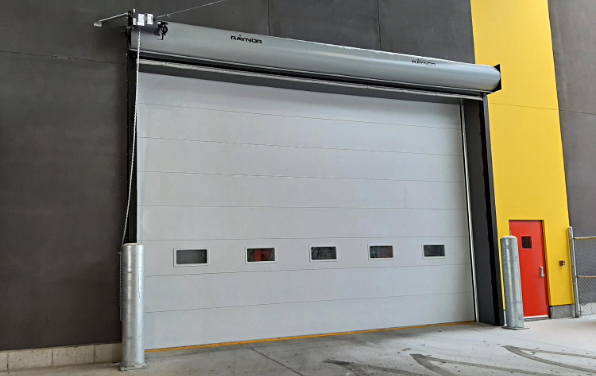

    Find Inspiration From Recent Projects
